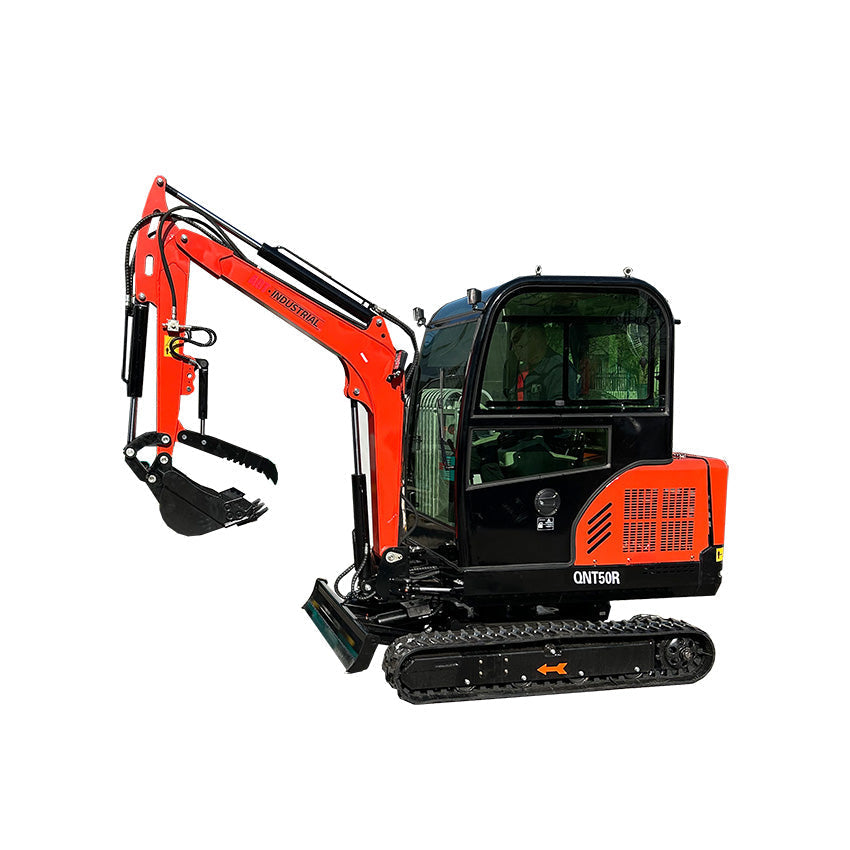

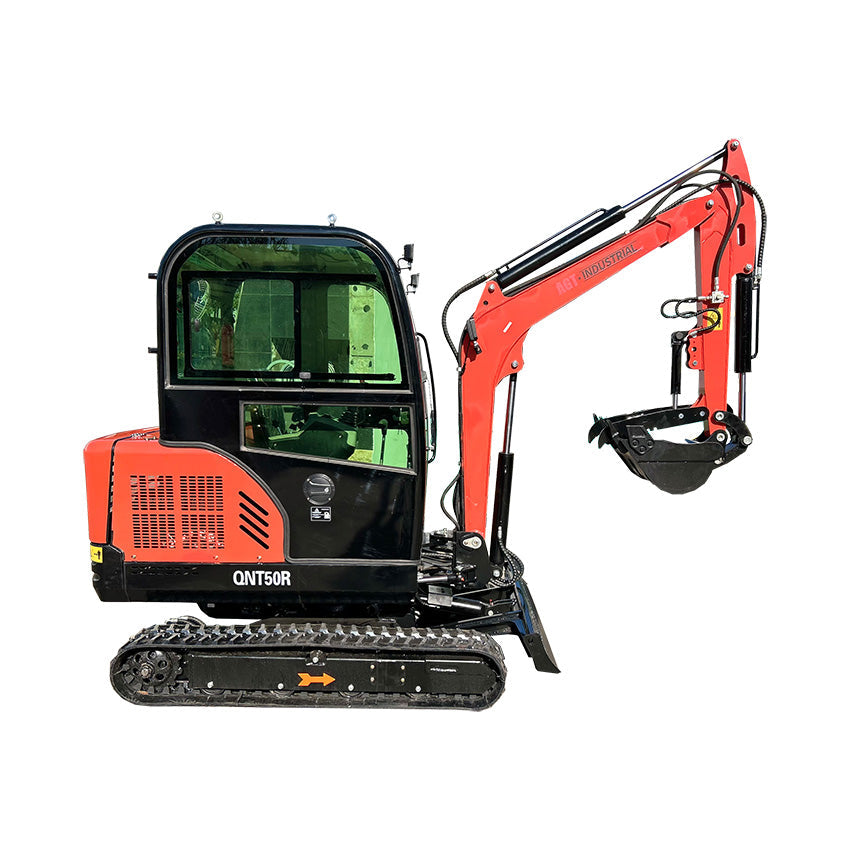

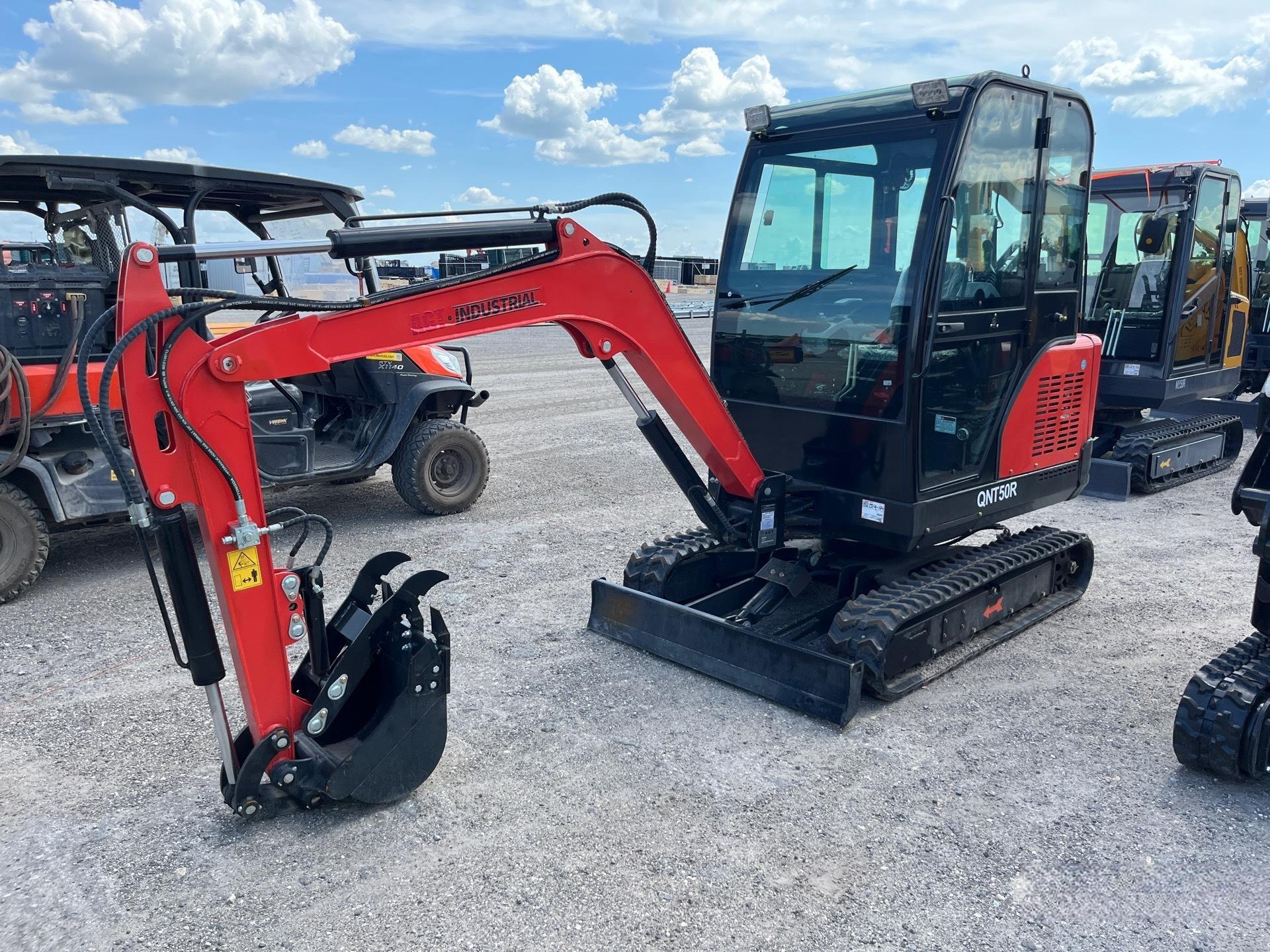

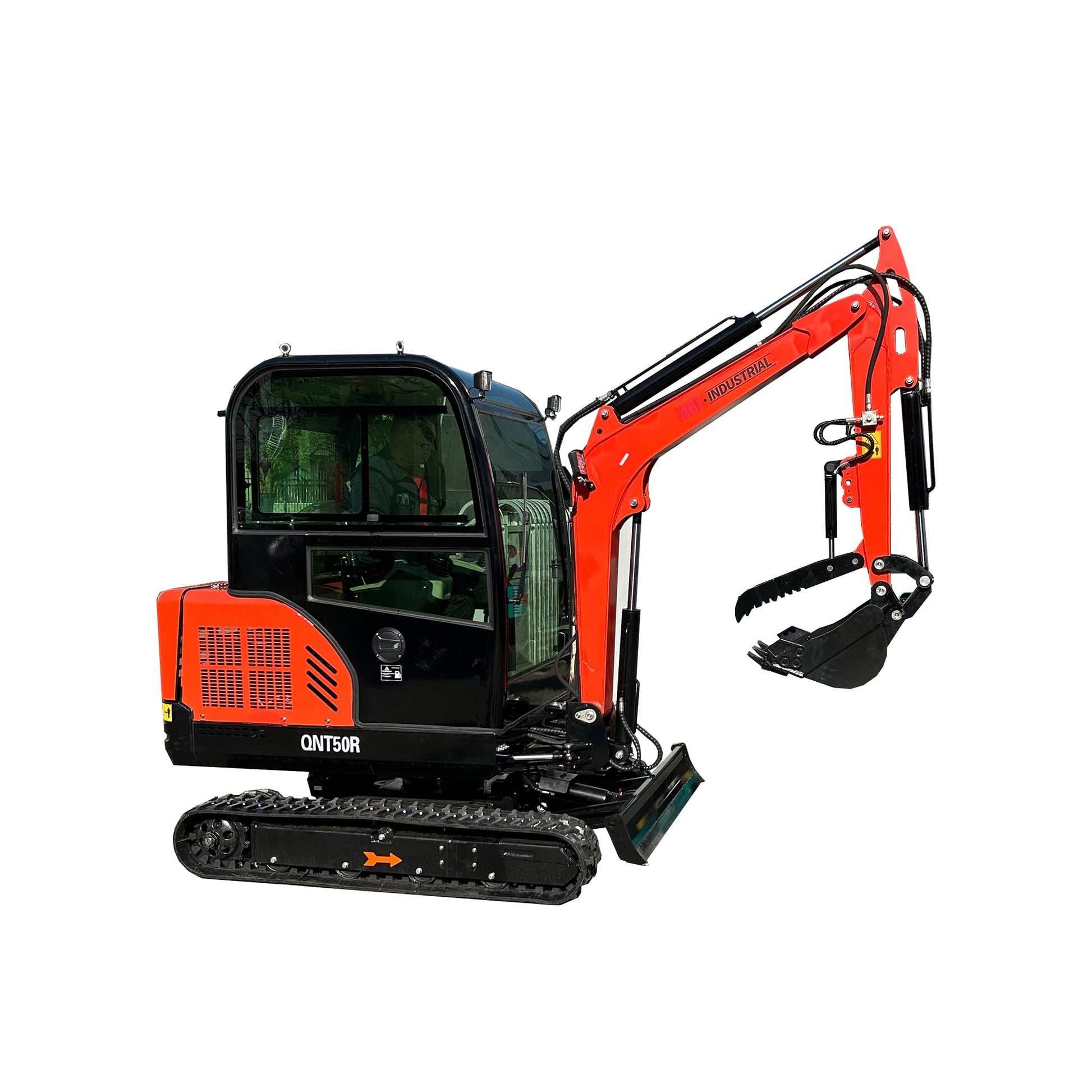

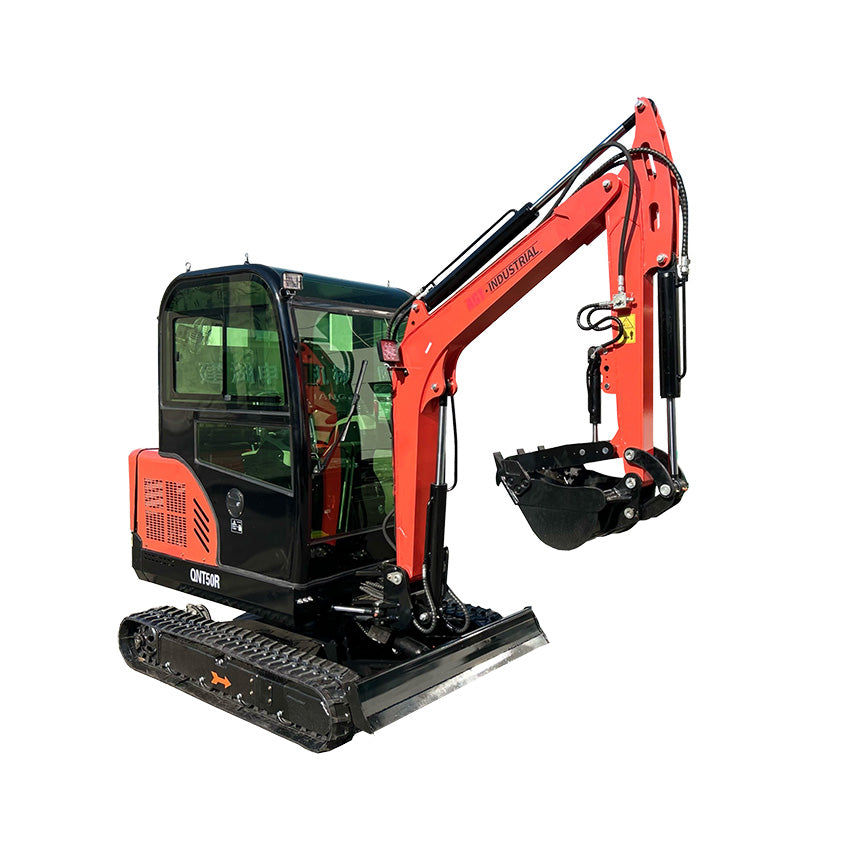

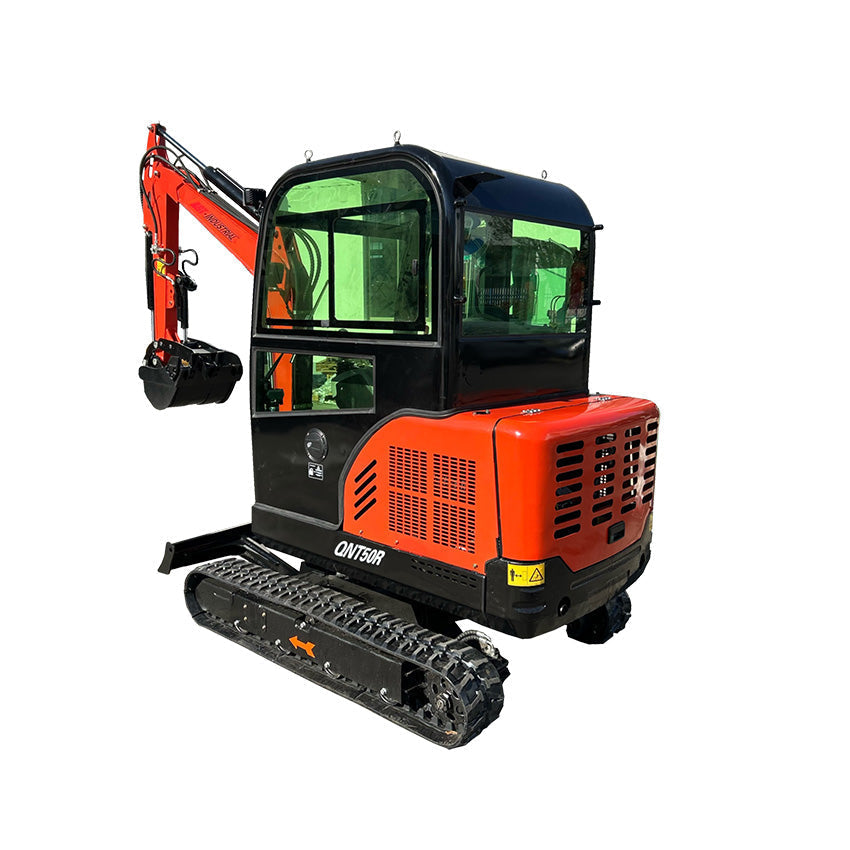

AGT QNT50R 3-Ton Mini Excavator with RATO 825 Gasoline Engine
The AGT QNT50R is a robust 3-ton mini excavator designed for versatility and efficiency in various construction, landscaping, and utility projects. Powered by a reliable RATO 825 gasoline engine, this machine combines power with maneuverability, making it ideal for tasks requiring precision and strength.Yancheng Hongxin+2AGT Industrial Inc.+2AGT Industrial Inc.+2
🔧 Key Features:
-
RATO 825 Gasoline Engine: Delivers a maximum output of 20.5 kW (27.5 HP) at 3,600 RPM, ensuring reliable performance for various tasks. Yancheng Hongxin
-

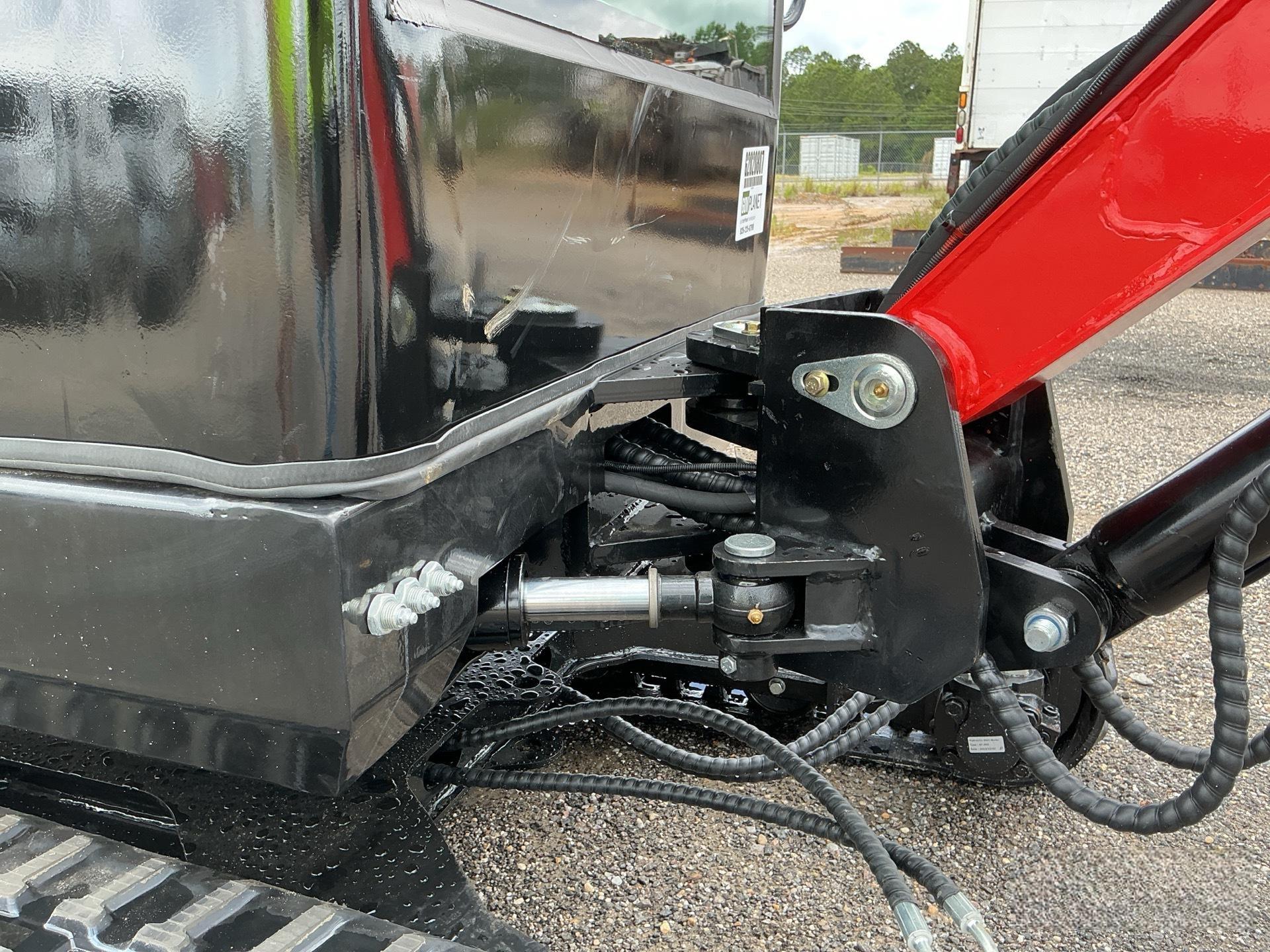

Swing Boom: Allows for enhanced maneuverability and precise digging in tight spaces, increasing operational flexibility.
-
Hydraulic Thumb: Equipped with a hydraulic thumb for improved material handling capabilities, making it ideal for tasks such as moving rocks and debris.
-

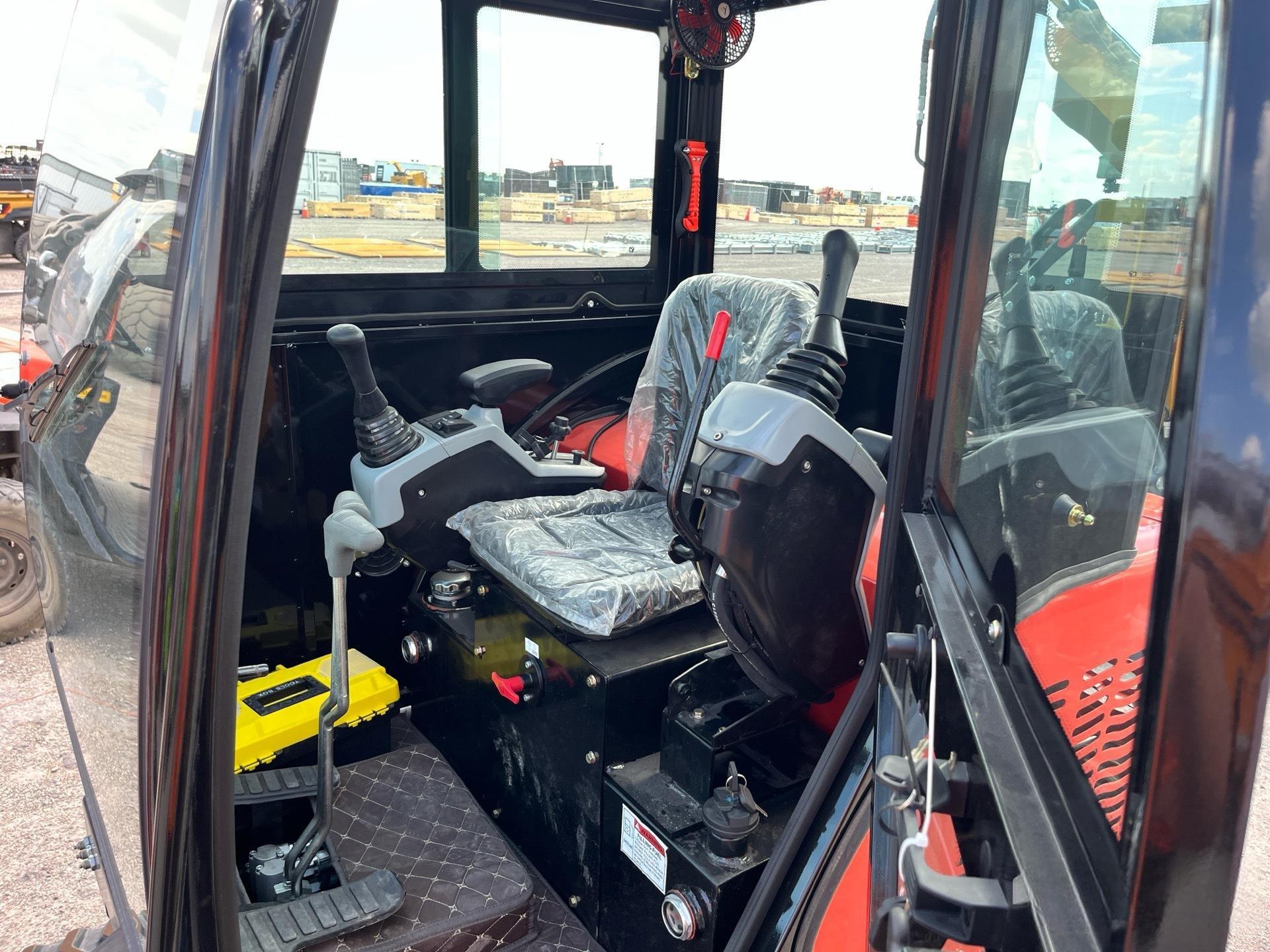

Enclosed Cab with Air Conditioning: Provides a comfortable working environment, protecting the operator from the elements and reducing fatigue during extended use.
-

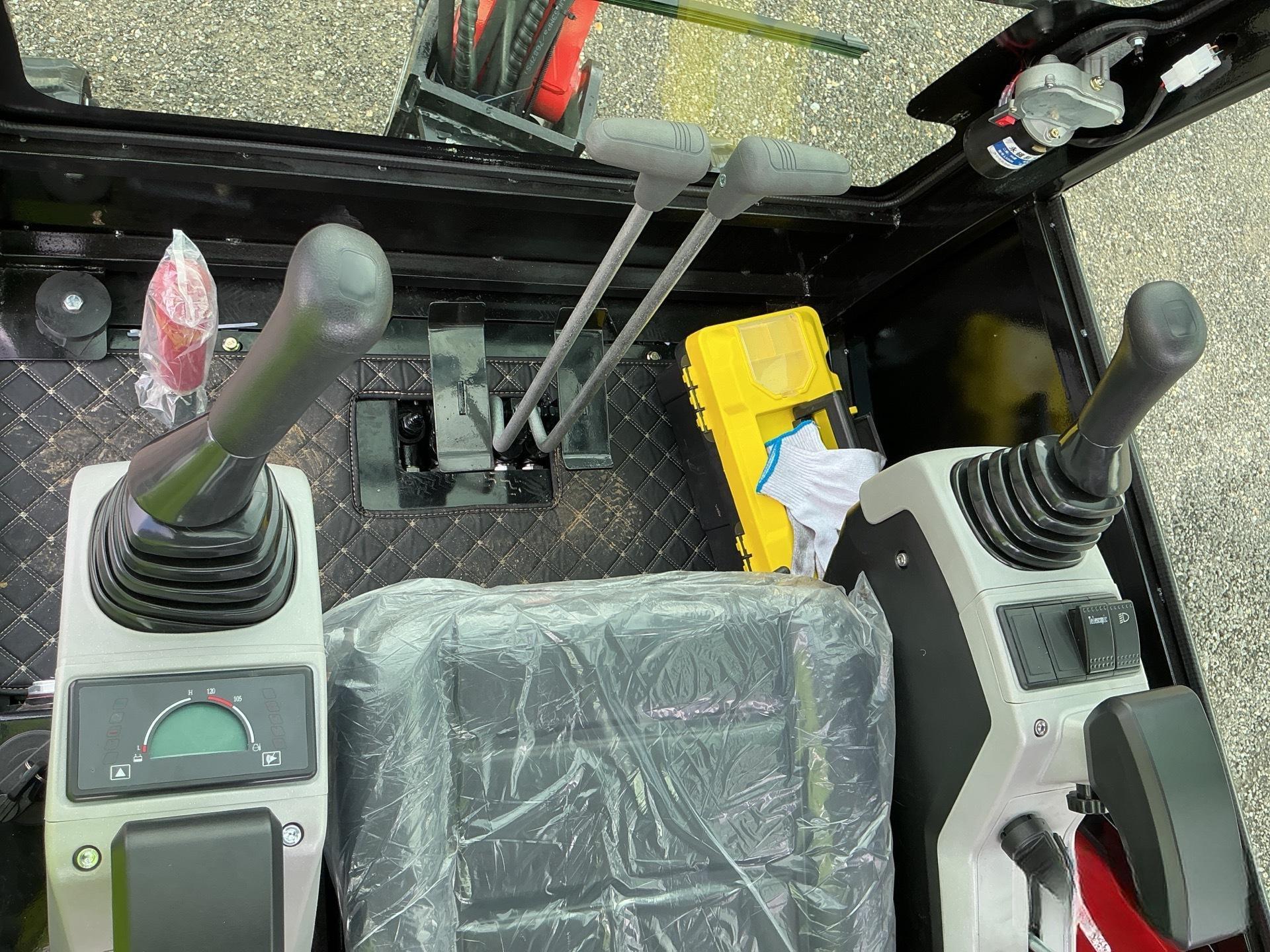

Pilot Control System: Features a pilot control system for smooth and responsive operation, enhancing operator comfort and control.
-
📐 Specifications Overview:
Feature Specification
| Operating Weight | 3,000 kg (6,600 lbs) |
| Engine | RATO 825, 2-cylinder, fan-cooled gasoline |
| Maximum Horsepower | 20.5 kW (27.5 HP) |
| Maximum RPM | 3,600 |
| Fuel Type | Gasoline (92#) |
| Fuel Consumption | Approximately 0.5–1.2 quarts/hour |
| Travel Speed | 0–1.8 km/h |
| Climbing Ability | 11% |
| Bucket Capacity | 0.08 m³ |
| Maximum Digging Depth | 2,570 mm (101.2 inches) |
| Maximum Digging Height | 3,600 mm (141.7 inches) |
| Maximum Unloading Height | 2,400 mm (94.5 inches) |
| Maximum Digging Radius | 4,200 mm (165.4 inches) |
| Overall Length | 5,400 mm (212.6 inches) |
| Overall Width | 1,300 mm (51.2 inches) |
| Overall Height | 2,200 mm (86.6 inches) |
| Bulldozer Width/Height | 1,300 mm / 230 mm (51.2" / 9") |

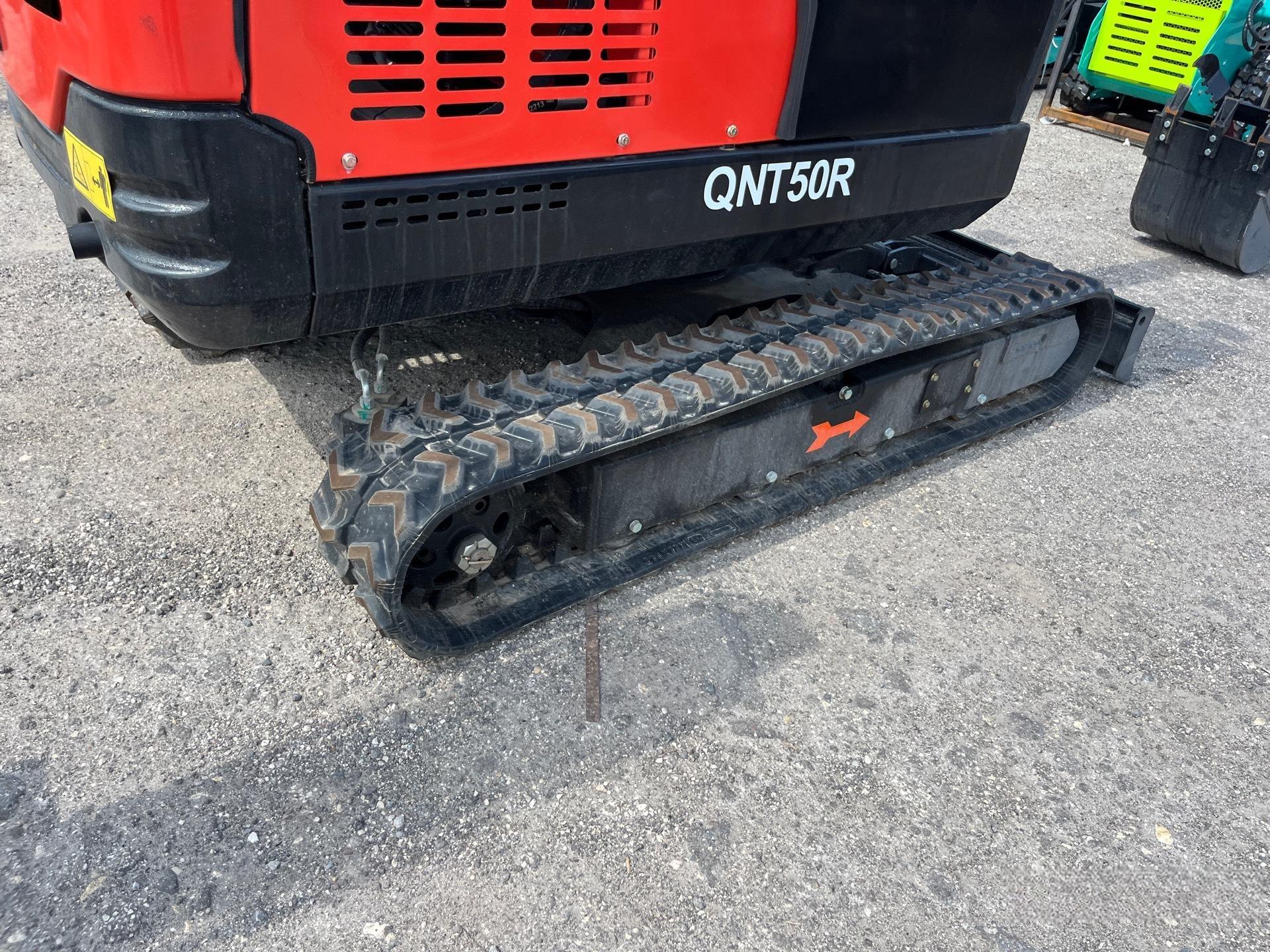

| Rubber Track Dimensions | 230 mm × 72 mm × 54 sections |
| Air Conditioning | Yes |
| Thumb Clip | Yes |
| Counterweight | Yes |
| Tensioning Forms | Mechanical |
| Hydraulic Oil Tank Capacity | 20 L |
| Fuel Tank Capacity | 16 L |
The AGT QNT50R is engineered to deliver exceptional performance and versatility, making it a valuable asset for a wide range of excavation tasks.
