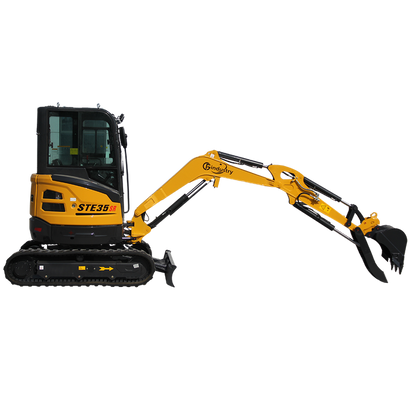

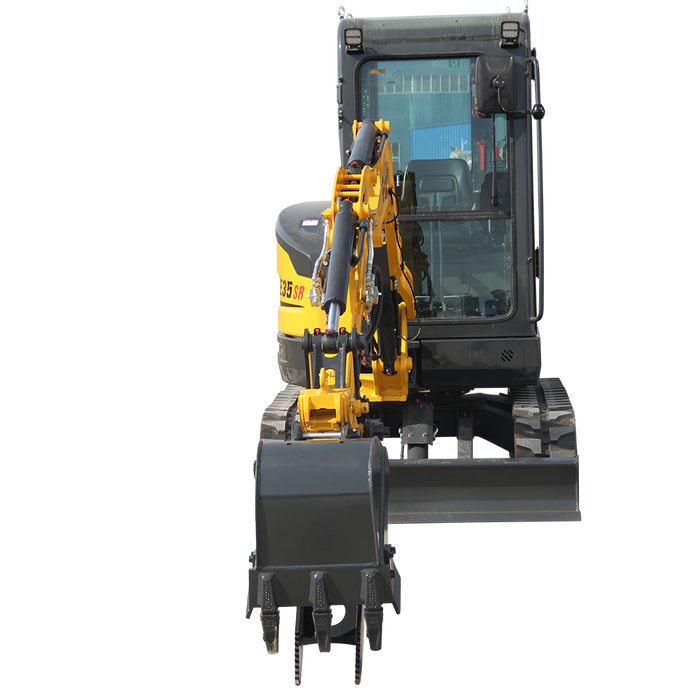

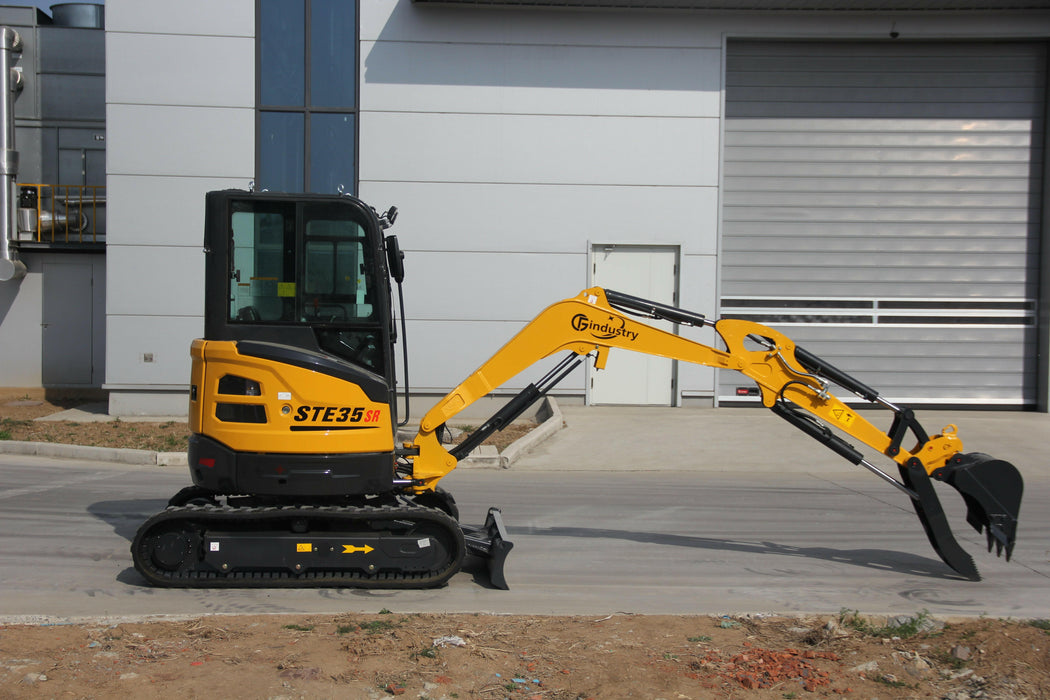

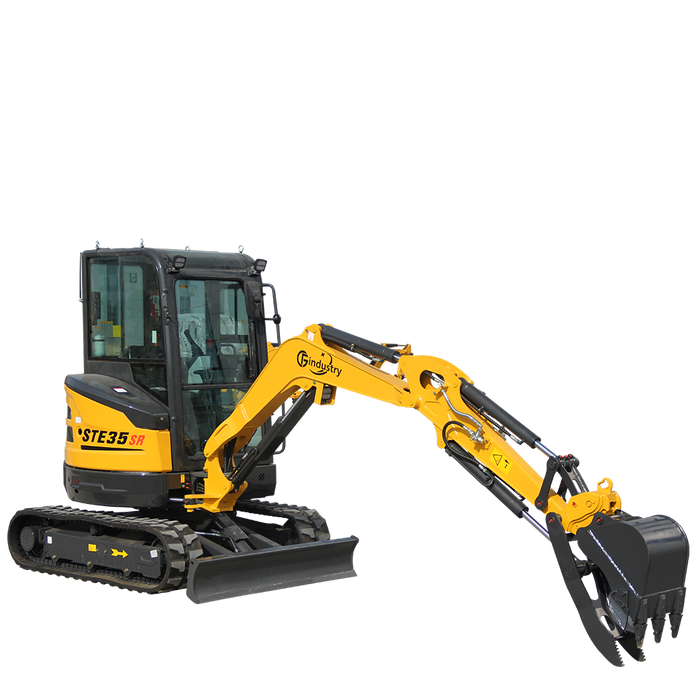

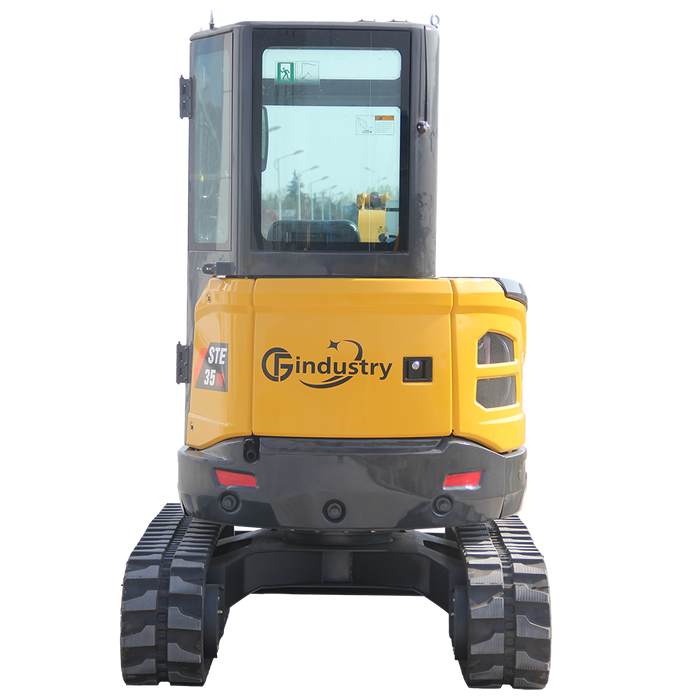

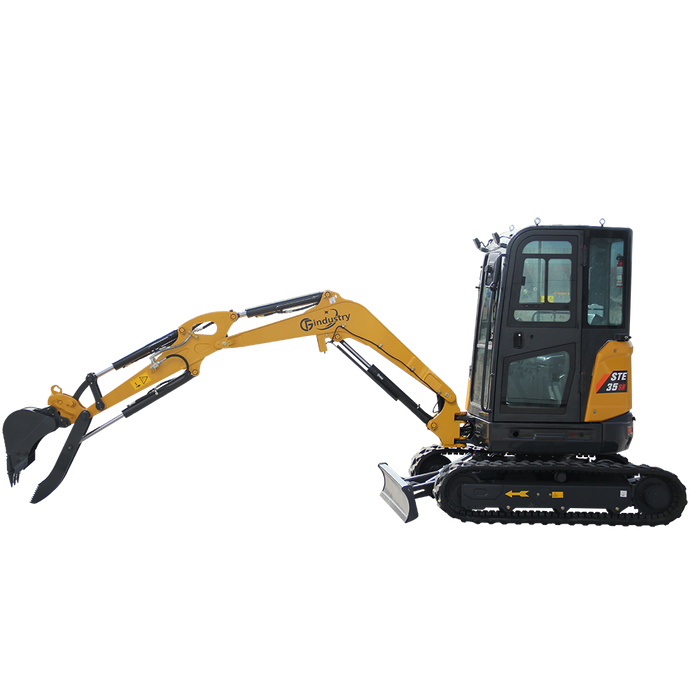

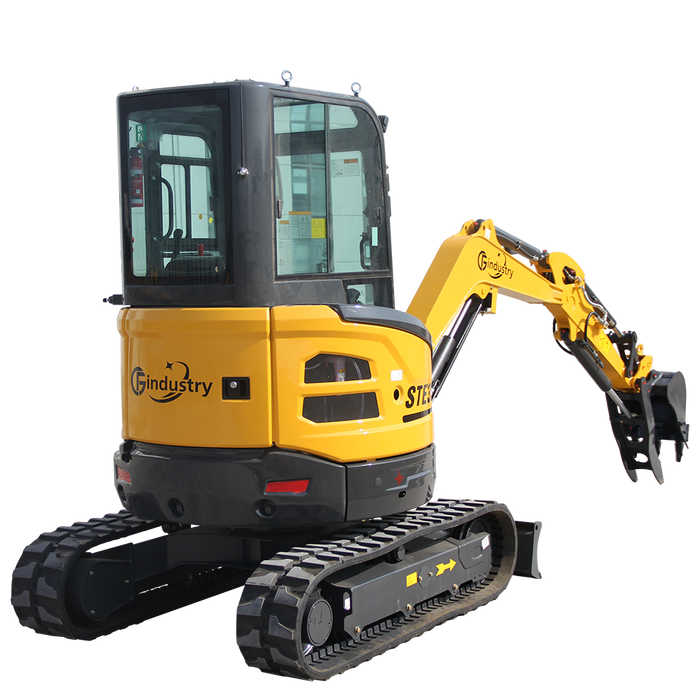

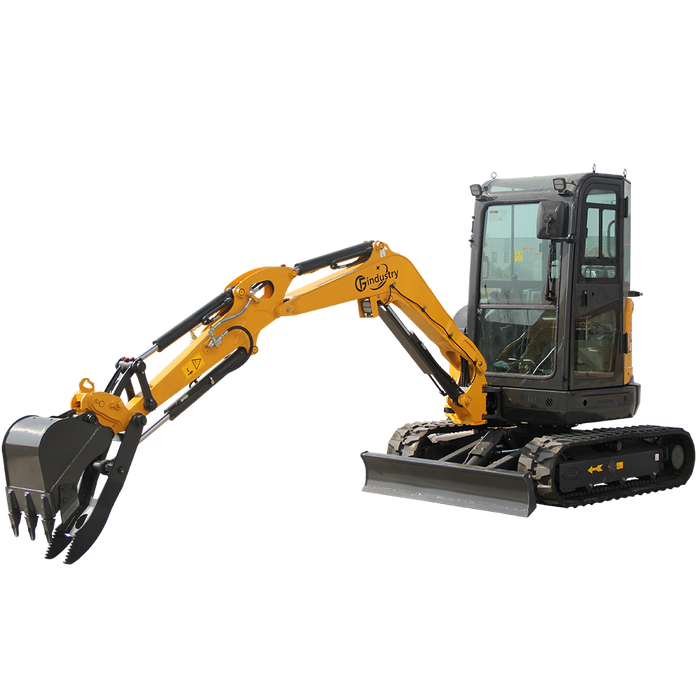

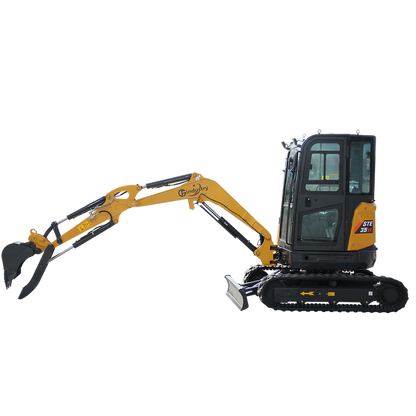

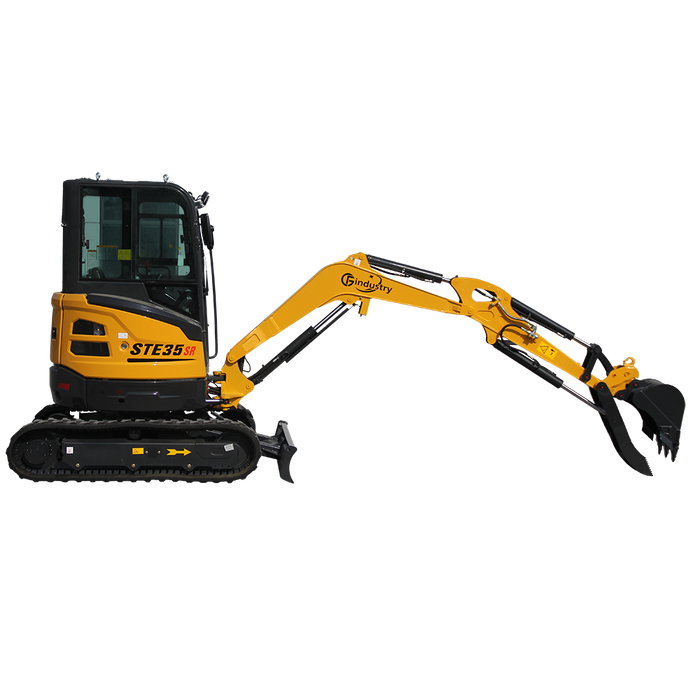

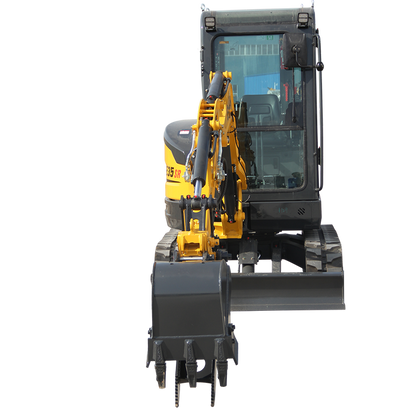

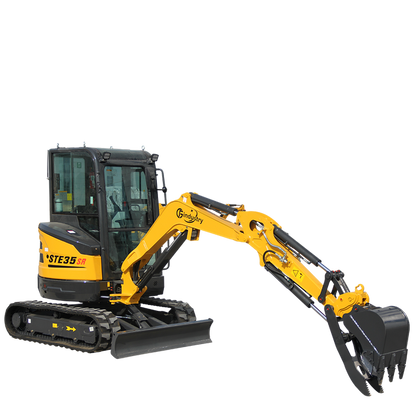

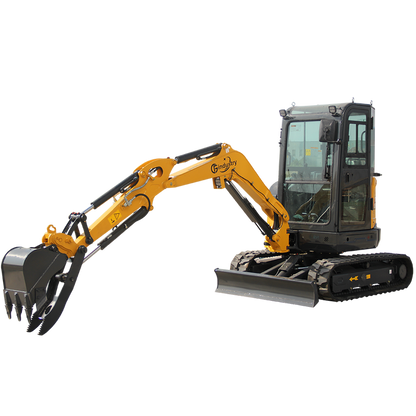

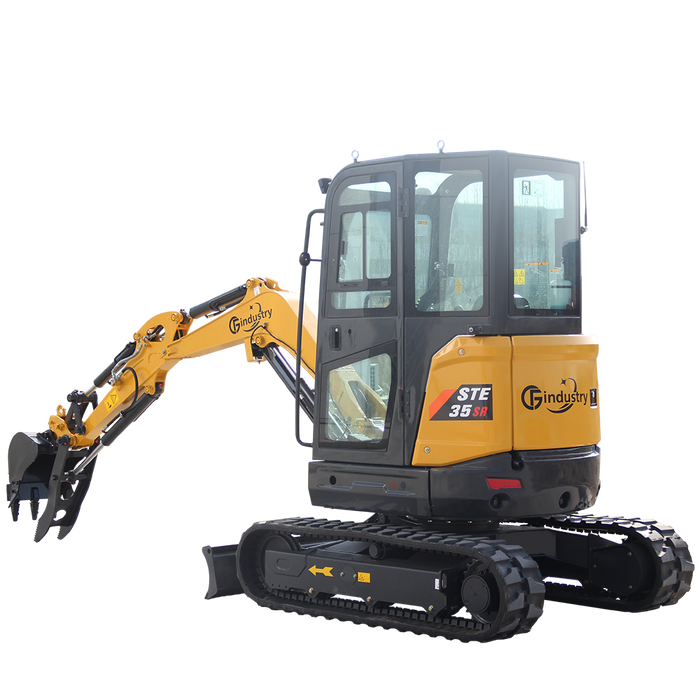

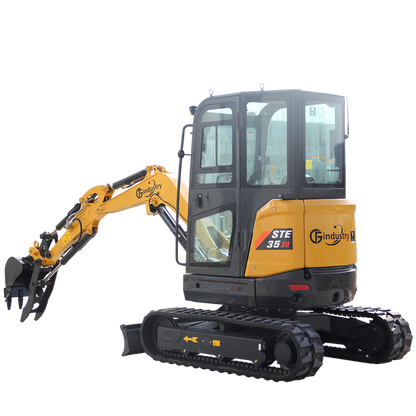

2.8 Ton, Yanmar Diesel Engine Mini Excavator w/ Hydraulic Thumb | CFG-STE35SR

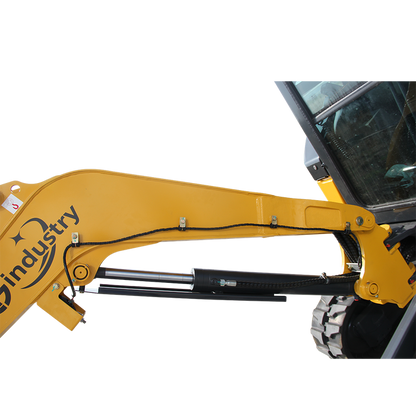

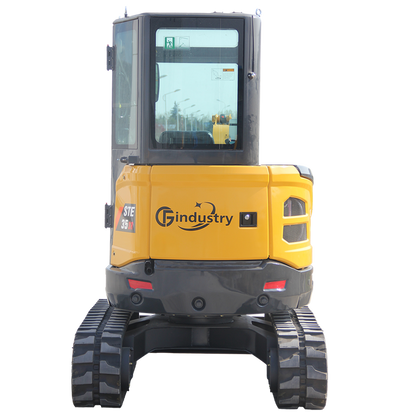

This 2.8-ton mini excavator combines compact design with powerful performance, featuring a 9.19-foot maximum digging depth for efficient work in tight spaces like driveways, backyards, and gardens. Equipped with a hydraulic thumb, internal hydraulic hoses for added safety, and rear-opening compartments for easy maintenance, it’s built for reliability and convenience.

Uses 35 mm pin attachments

Technical Data:

• Operation Weight: 2.8 Ton
• Engine: Yanmar Diesel Engine
• Horse Power: 25
• Max Angle: 30 Degree

Dimension

• Operating weight: 2.8 Ton (6,173 lbs)
• Overall length: 4,880 mm (192 in)
• Overall width: 1,740 mm (68.5 in)
• Overall height: 2,550 mm (100 in)
• Track Size: 300*55*80 (Width*Pitch Length*Links)
• Ground clearance: 295 mm (11.6 in)
• Tail swing radius: 860 mm (33.9 in)
• Undercarriage length: 3,360 mm (132 in)
• Track gauge: ~1,350 mm (53.1 in)
• Track rollers per side: 4

Working Range

• Max digging depth: 2,800 mm (110 in)
• Max digging height: 5,100 mm (200 in)
• Max dumping height: 3,600 mm (142 in)
• Max reach at ground level: 4,680 mm (184 in)
• Dozer Blade Width: 1,530 mm (60 in)
• Dozer Blade Height: 300 mm(12 in)
• Blade Max Lifting Height: 300 mm (12 in)
• Blade Max Drop Depth: 320 mm (12.5 in)
• Bucket breakout force: 24 kN (5,400 lbf)
• Arm digging force: 14.8 kN (3,330 lbf)

Engine

• Brand: Yanmar
• Fuel type: Diesel
• Model: 3TNV80F
• Type: 3-cylinder, water-cooled, diesel
• Rated power: 18.2 kW (25 hp)
• Displacement: 1642 cc
• Fuel capacity: 50 L (13.2 gal)
• Hydraulic Tank Capacity: 22L (5.8 gal)
• Cooling: Liquid-cooled radiator
• Max torque: ~77 Nm @ 1,500 RPM
• Emission standard: Tier 4 Final / EU Stage V

Features

• Enclosed Cabin
• Pilot Control
• Side Swing Boom

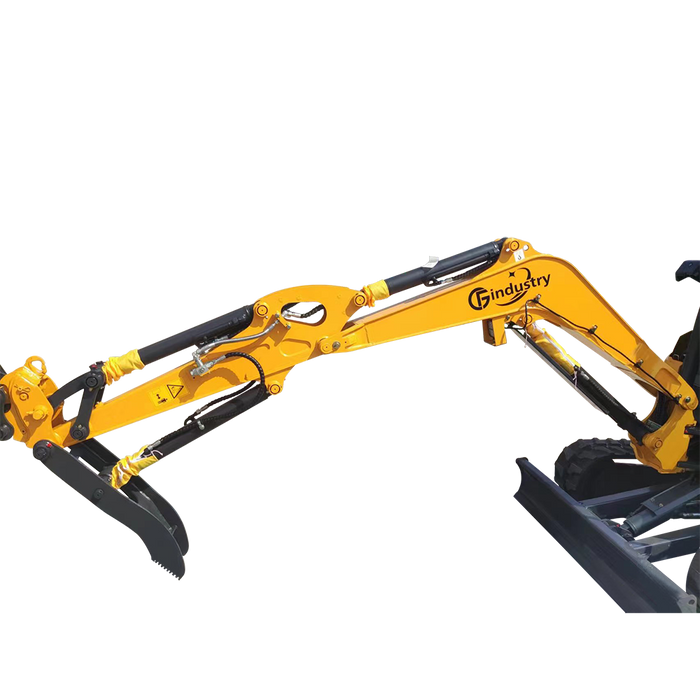

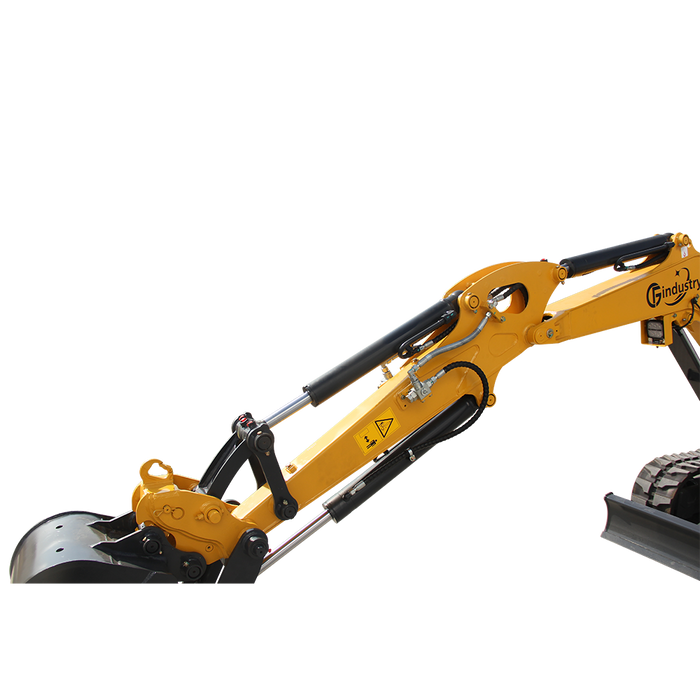

• Hydraulic Thumb
• LED Lights
• Rearview Mirror
• Bucket sizes: 0.1 – 0.15 m³ (3.5 – 5.3 ft³)
• Auger: Compatible, flow matched up to 25 GPM
• Breaker: Compatible, flow matched
• Grapple: Compatible
• Quick coupler: Optional pin-on type
