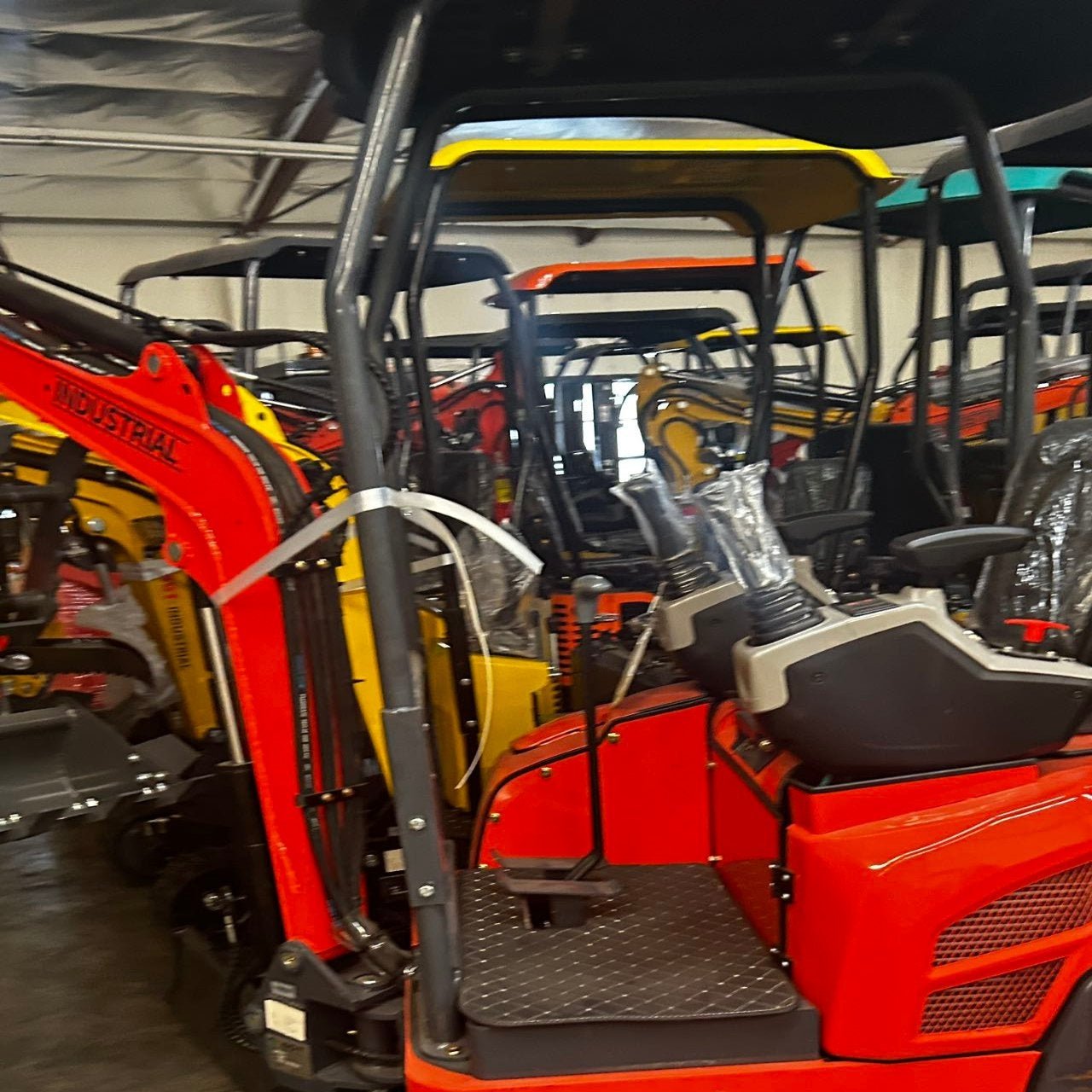

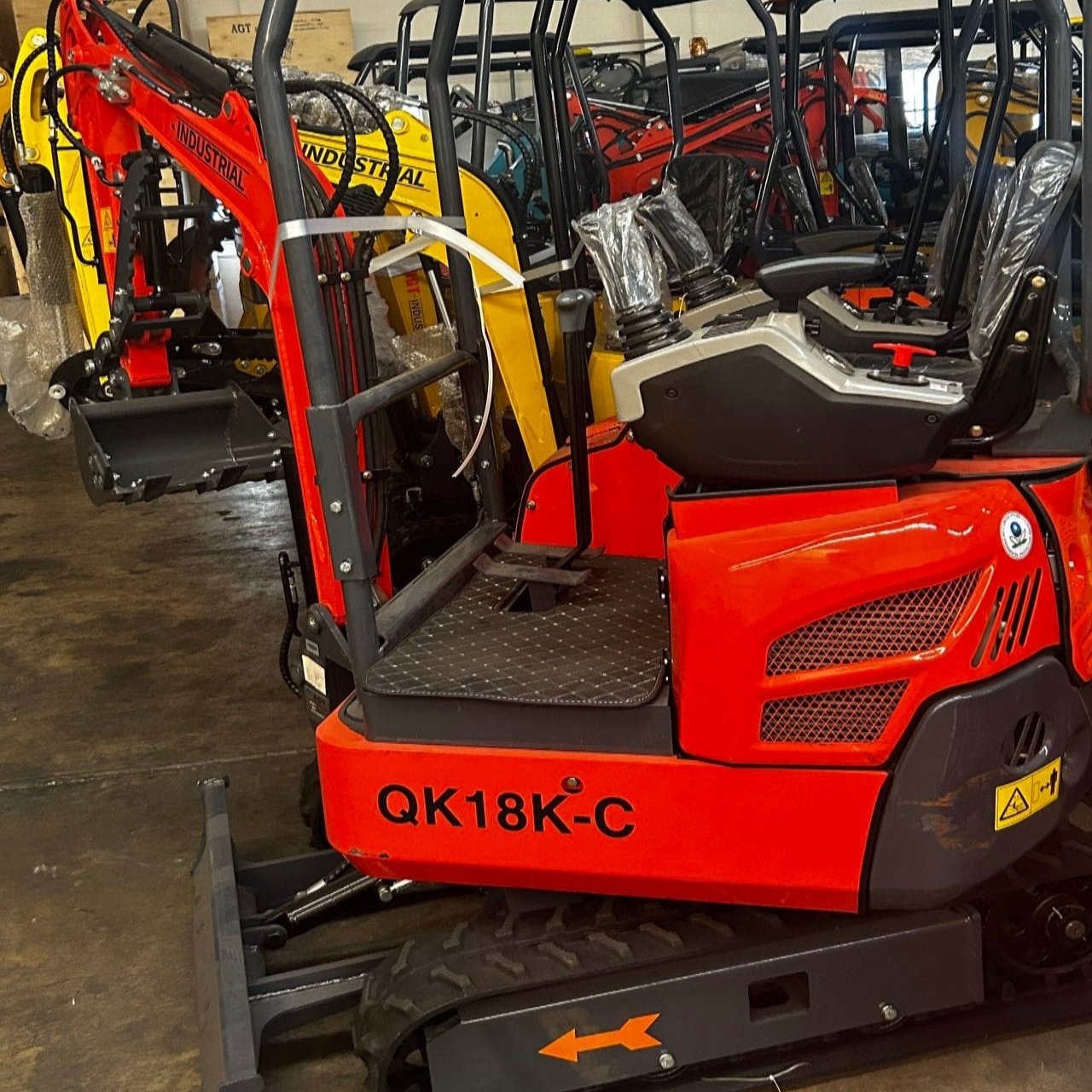

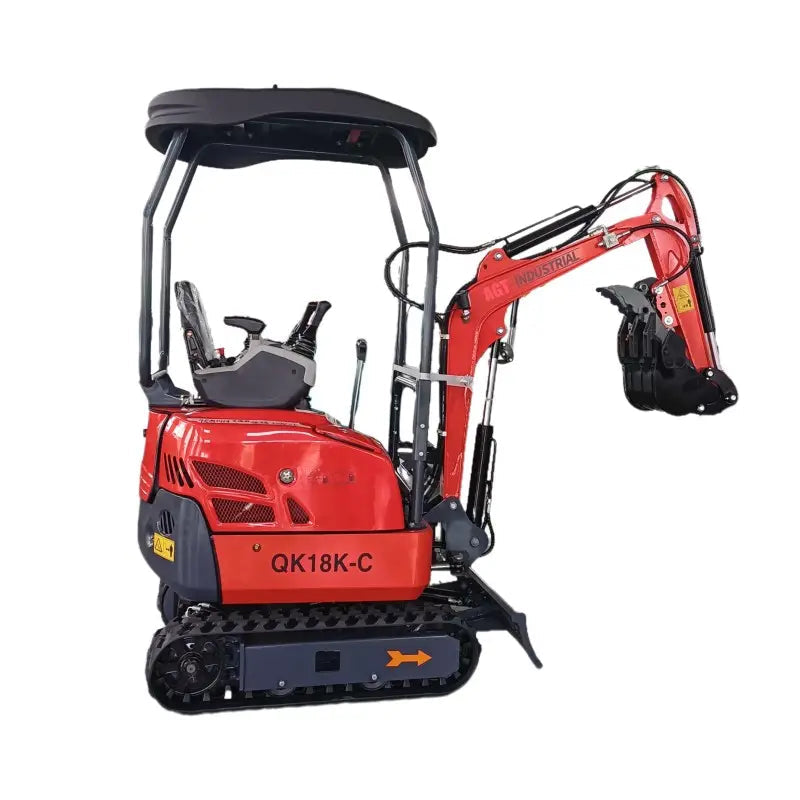

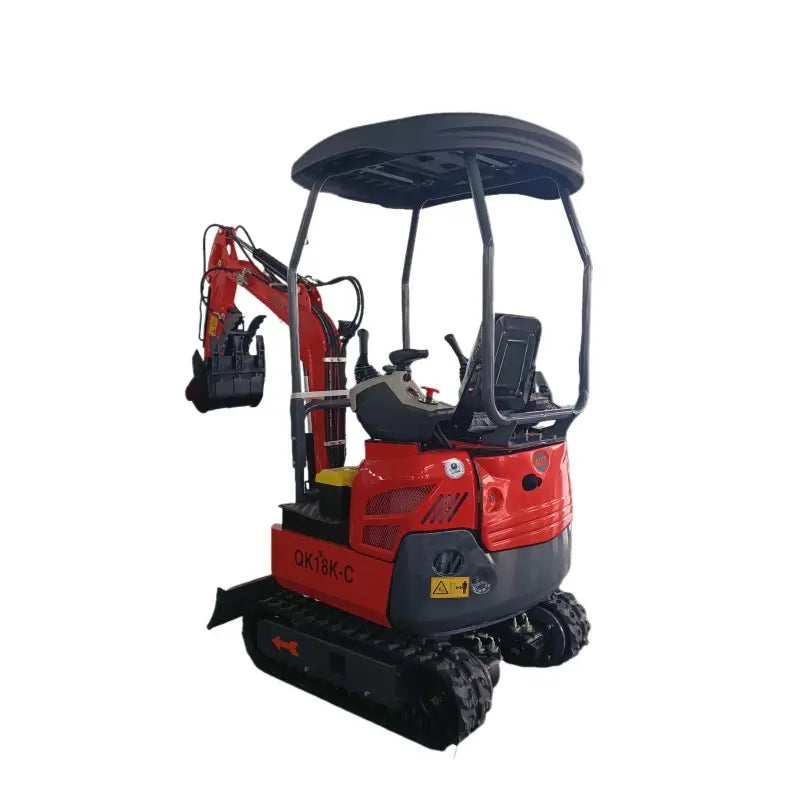

1.4 Ton, Kubota Engine Mini Excavator w/ Side Swing Boom, & Hydraulic Thumb | AGT-QK18K-C

The QK18K-C stands out in the 1.8-ton excavator class with its powerful Kubota engine, integrated swing boom, and hydraulic thumb for enhanced versatility. Unlike other excavators in its class, this model is equipped with a robust 12 series boom and arm, offering compatibility with a wider range of attachments.

In Action Video

Manual

Technical Data:

• Operation Weight: 1.4 Ton
• Engine: Kubota Engine
• Horse Power: 13.5
• Max Angle: 30 Degree

Specific Data:

Engine:

• Brand: Kubota
• Model: D722-EF18
• Type: 3-cylinder, water-cooled diesel
• Power Output: 13.5HP
• Maximum Speed: 3,600 RPM

Dimensions:

• Total Length: 2,925 mm
• Overall Width: 958 mm
• Total Height: 2,422 mm
• Operating Specifications:
• Operating Weight: 1.8 tons
• Bucket Capacity: 0.03 m³
• Maximum Digging Depth: 1,693 mm
• Maximum Digging Height: 2,560 mm
• Maximum Digging Radius: 3,060 mm
• Travel Speed: 0–1.8 km/h
• Climbing Ability: 30%

Hydraulic System:

• Rated Set Pressure: 25 MPa
• Main Pump Type: GP510803
• Maximum Flow Rate of Main Pump: 21.6 L/min
• Multi-Circuit Valve: 4 mechanical + 4 hydraulic
• Rotary Hydraulic Motor Type: BM2-315
• Traveling Hydraulic Motor Type: BM6-315

Additional Features:

• Swing Boom: Allows for precise maneuverability in confined spaces.
• Hydraulic Thumb: Enhances material handling capabilities, ideal for gripping and moving objects.

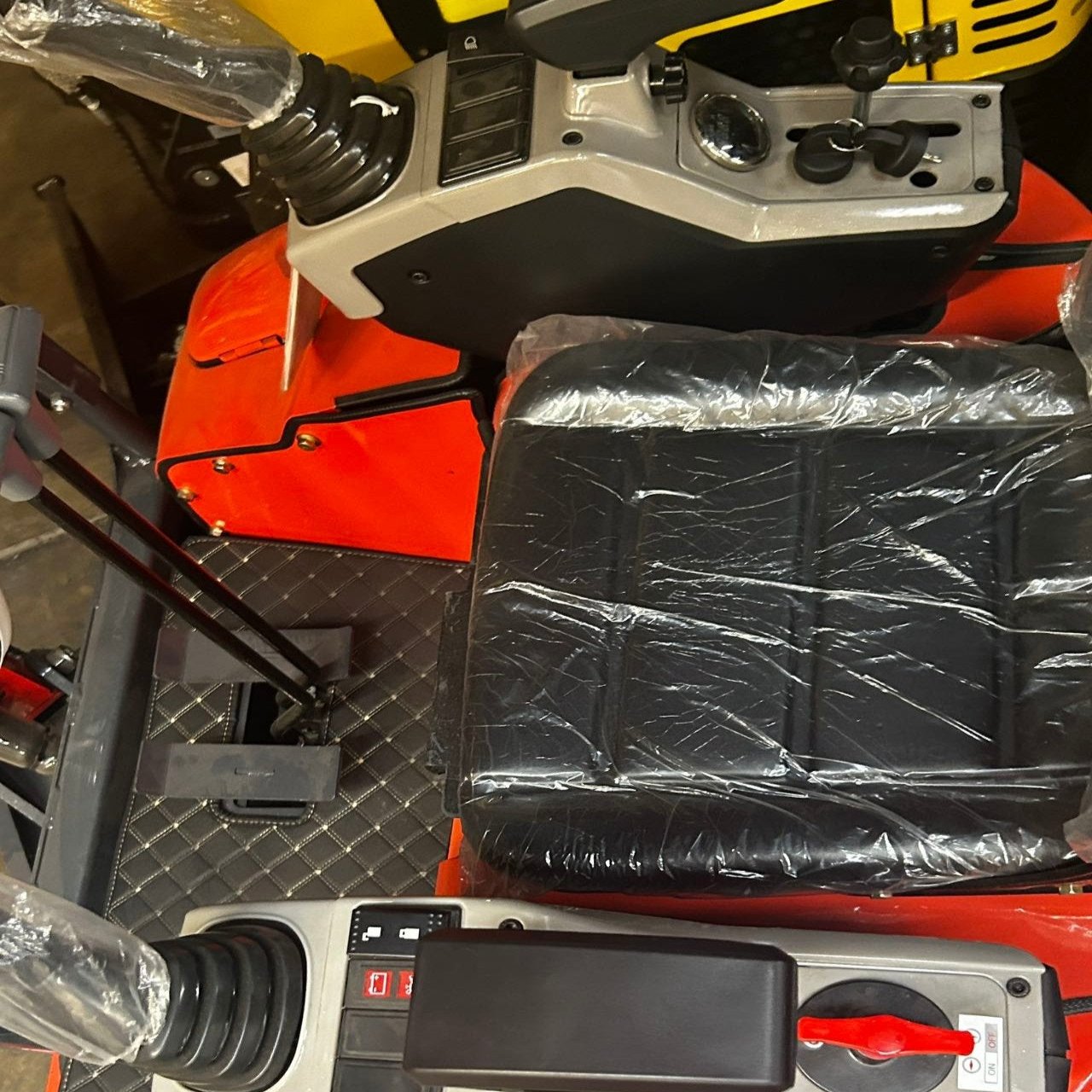

• Pilot Controls with Safety Lockout: Ensures operator safety and precise control.
• Auxiliary Hydraulics: Supports a variety of attachments for increased versatility.

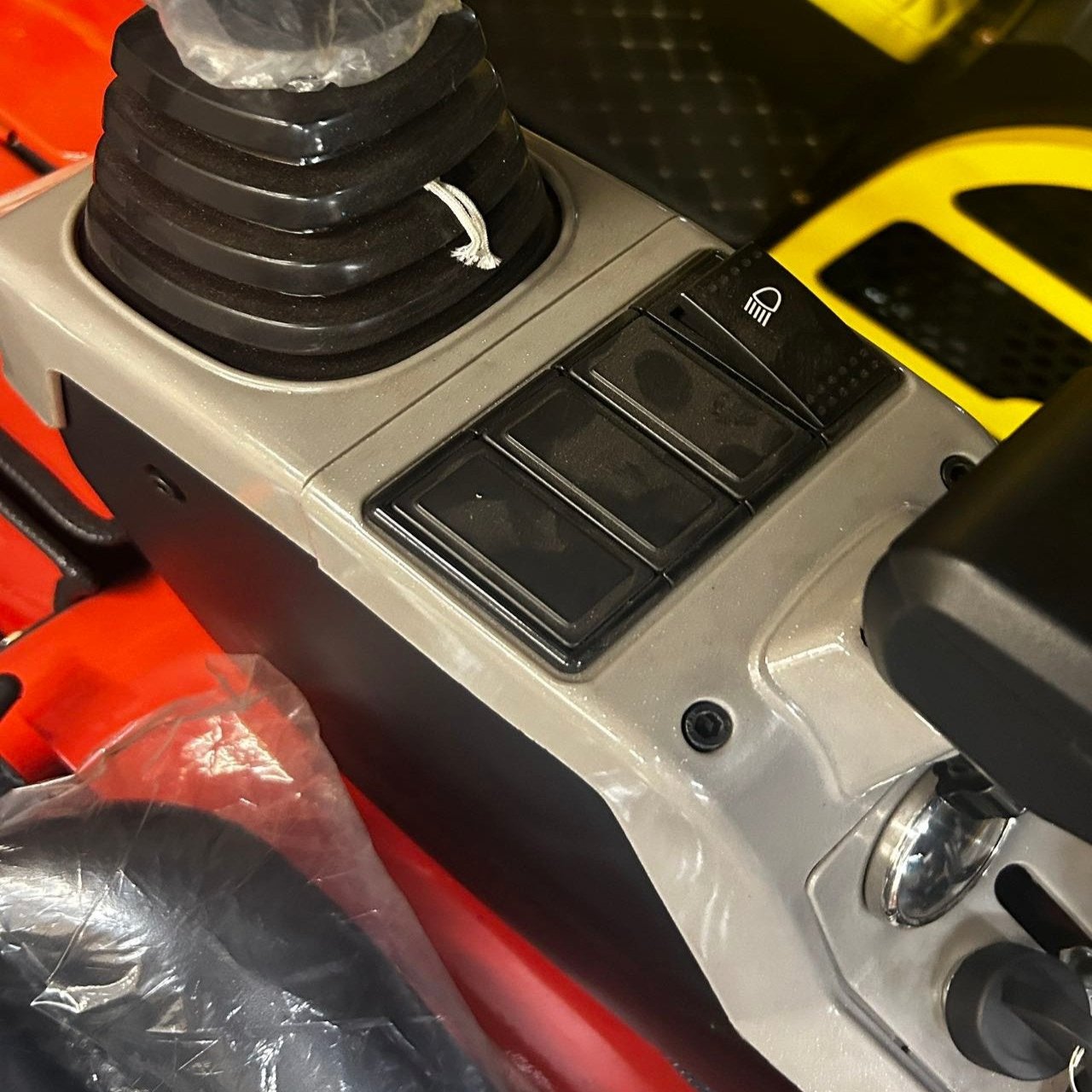

• LED Lights: Provides improved visibility in low-light conditions.

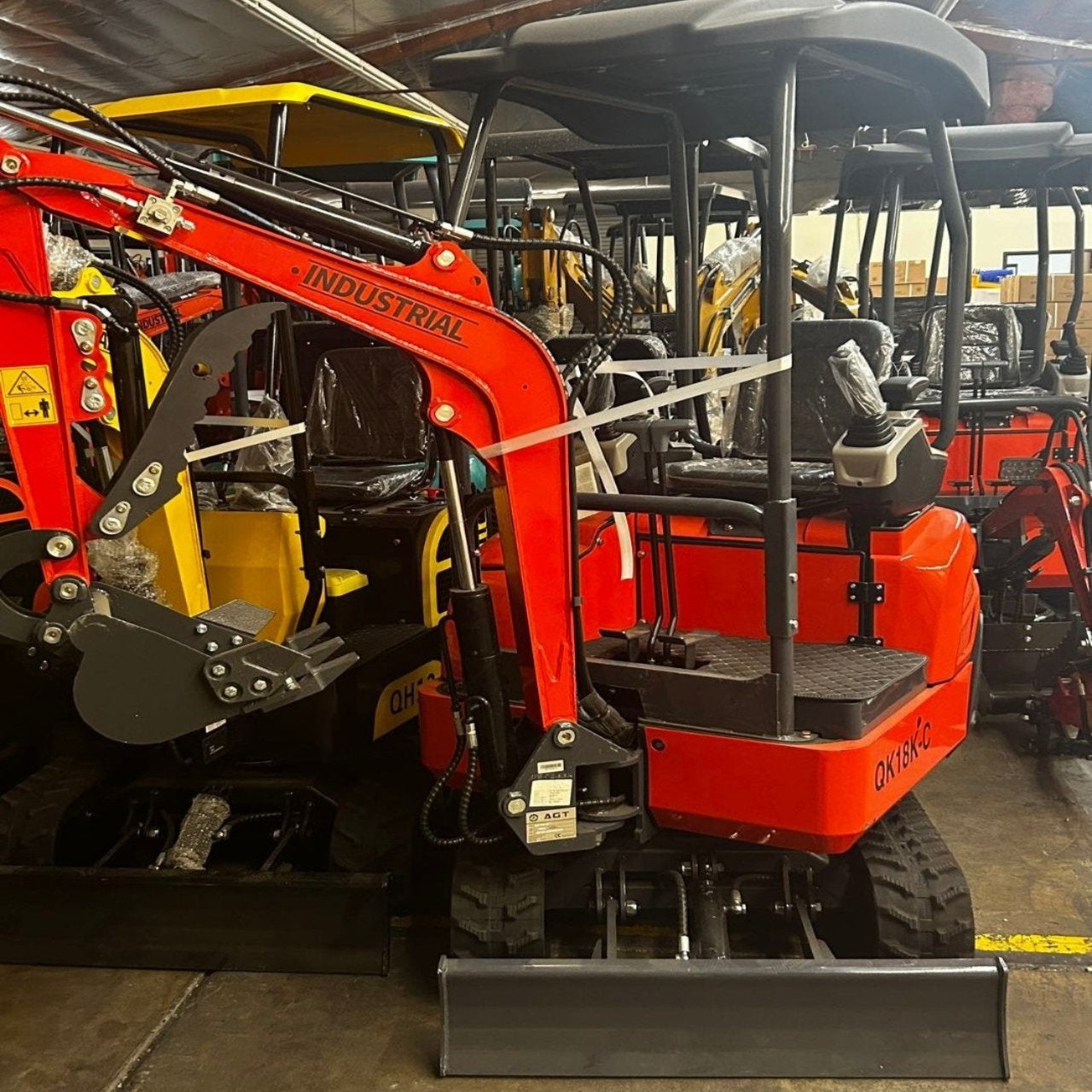

• Backfill Blade: 39 inches wide, useful for grading and backfilling tasks.
• Rubber Tracks: 7 inches wide, designed to minimize ground disturbance and provide traction.
• Bucket: 16-inch digging bucket included.
