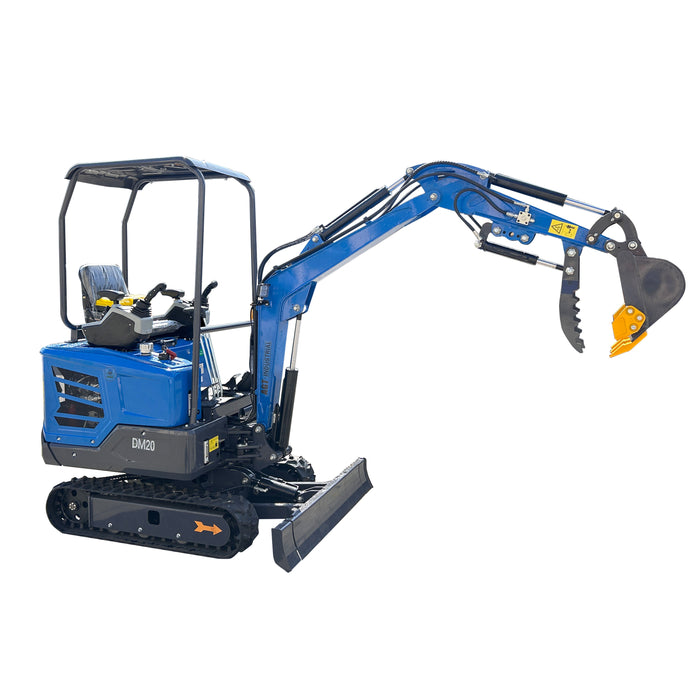

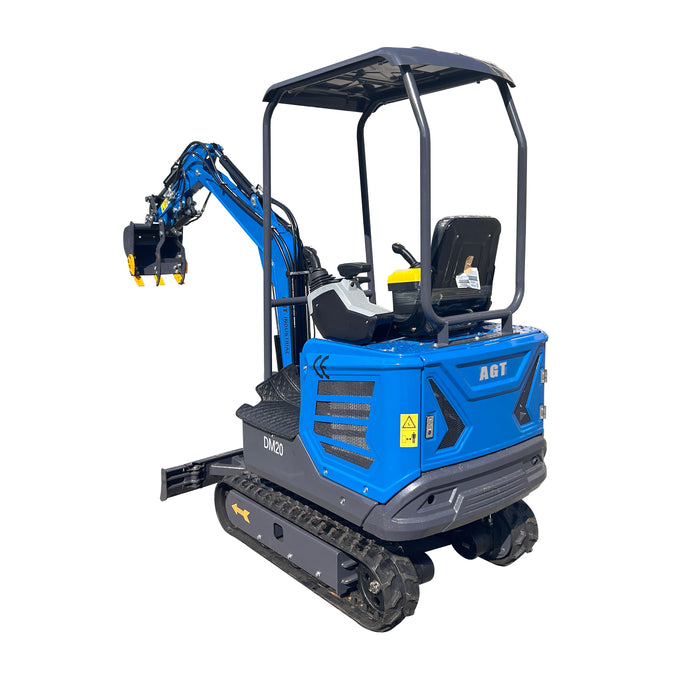

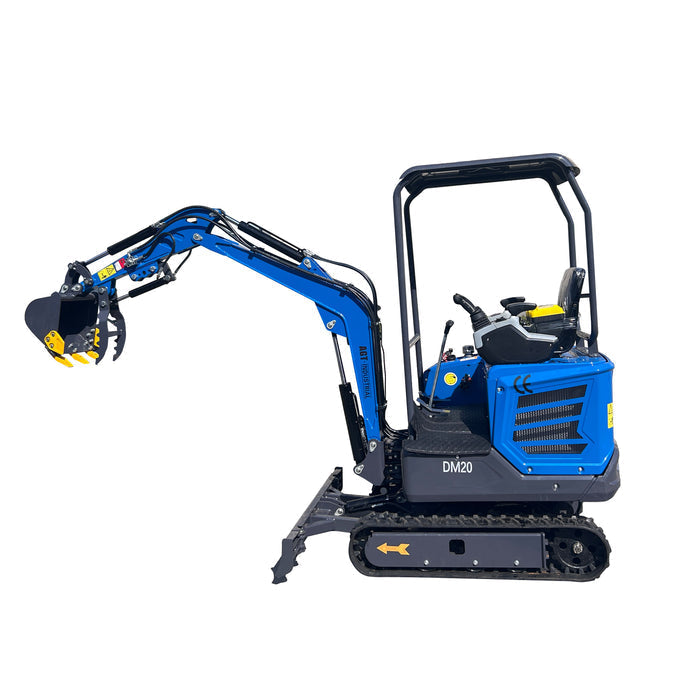

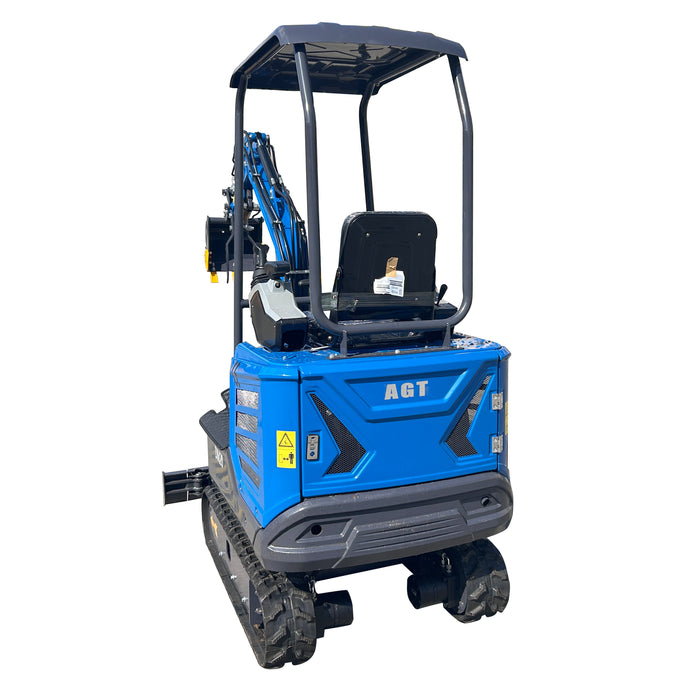

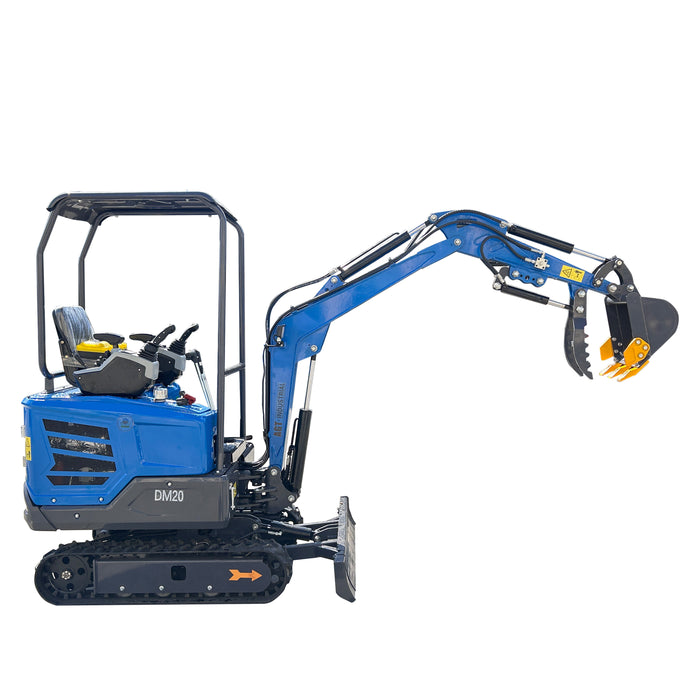

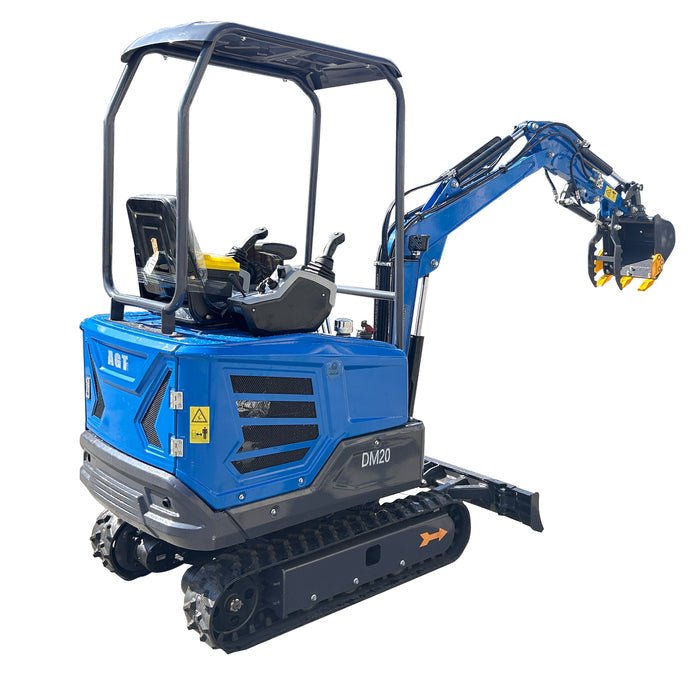

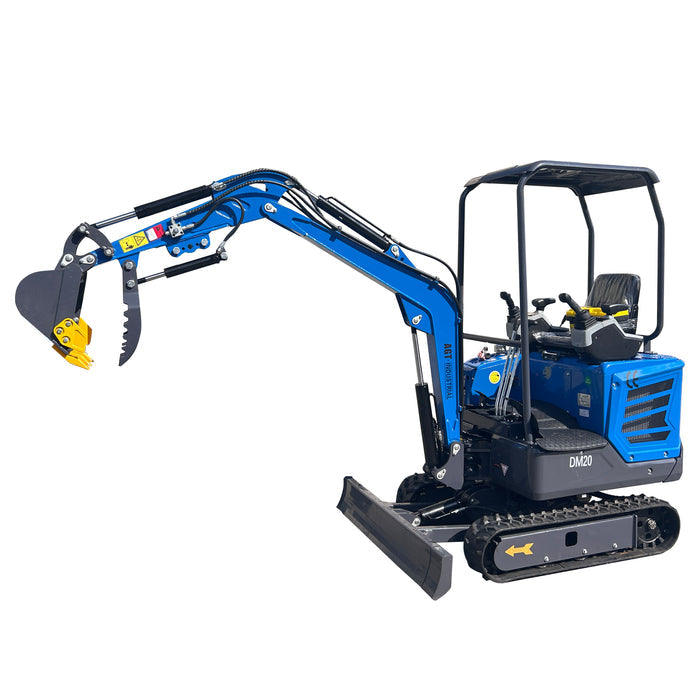

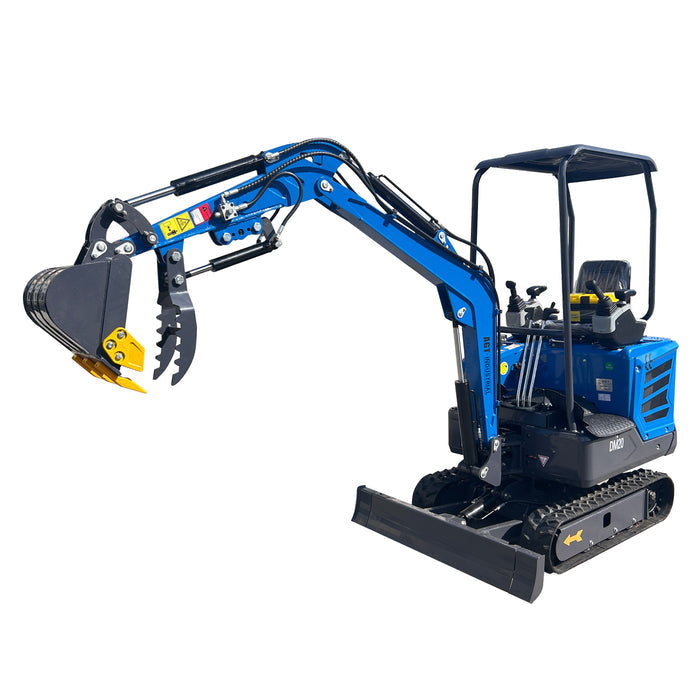

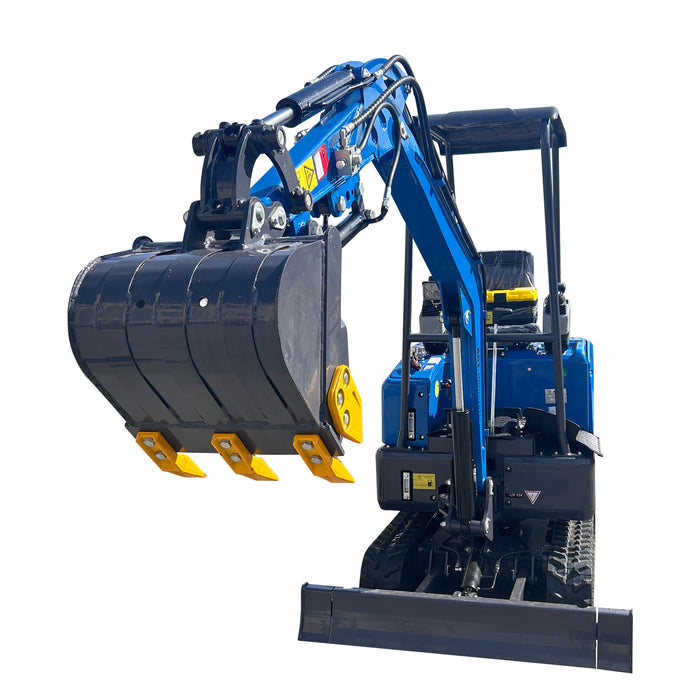

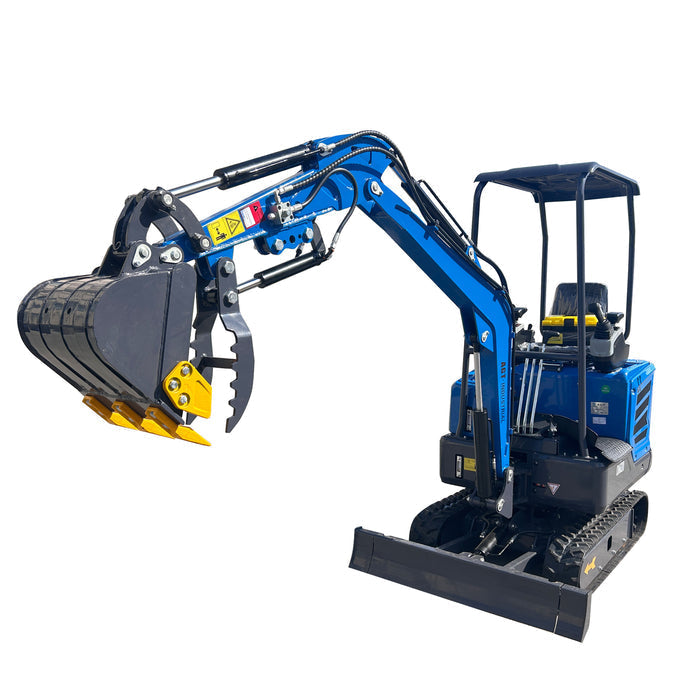

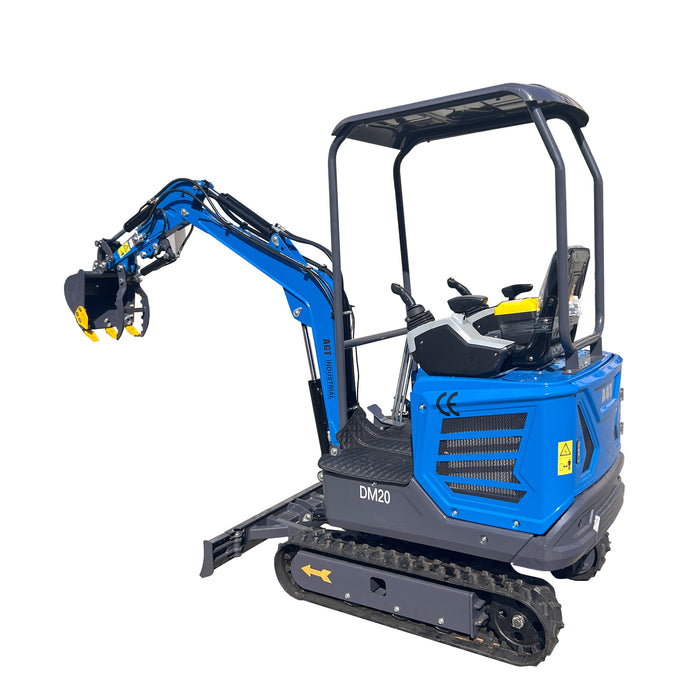

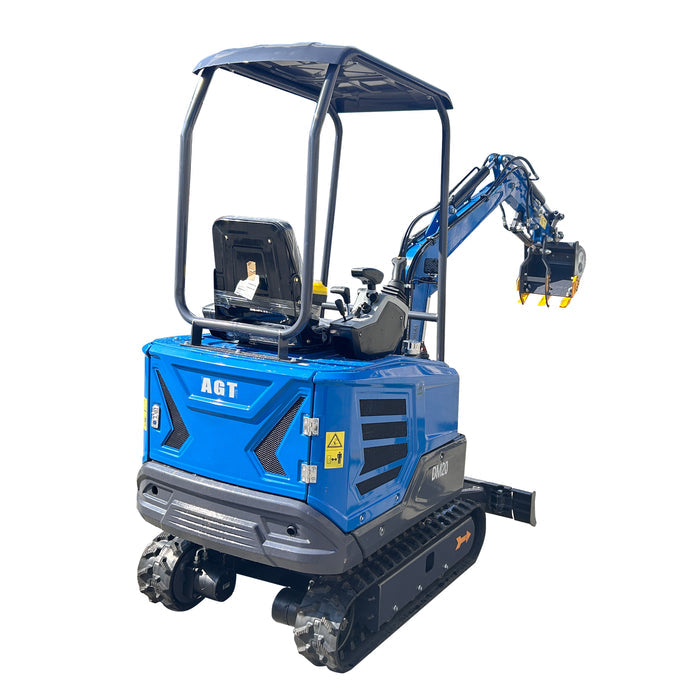

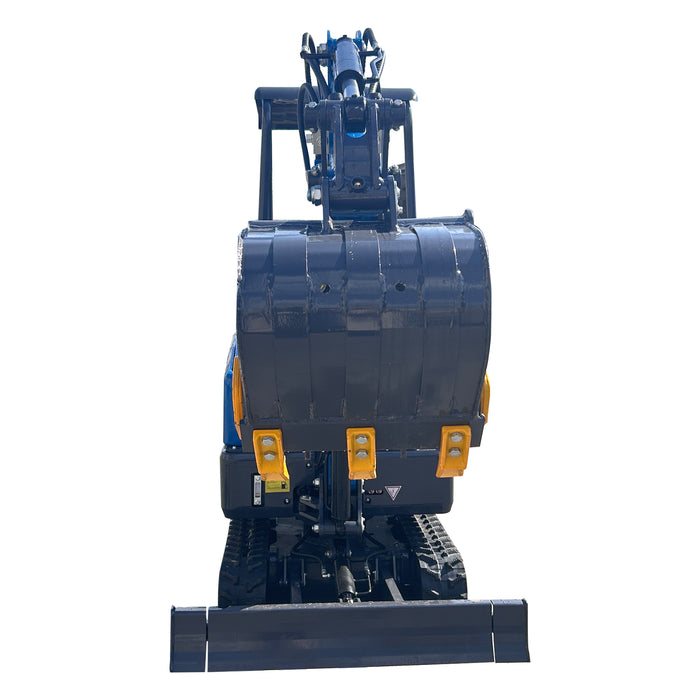

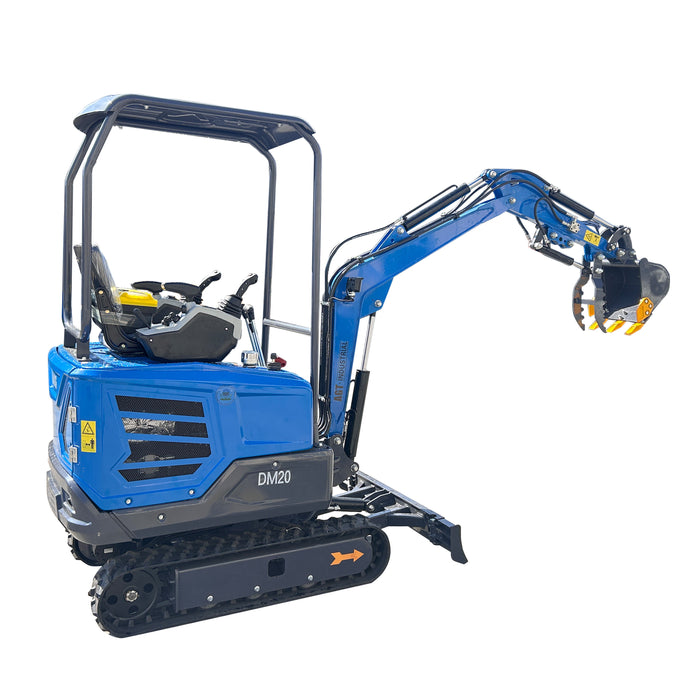

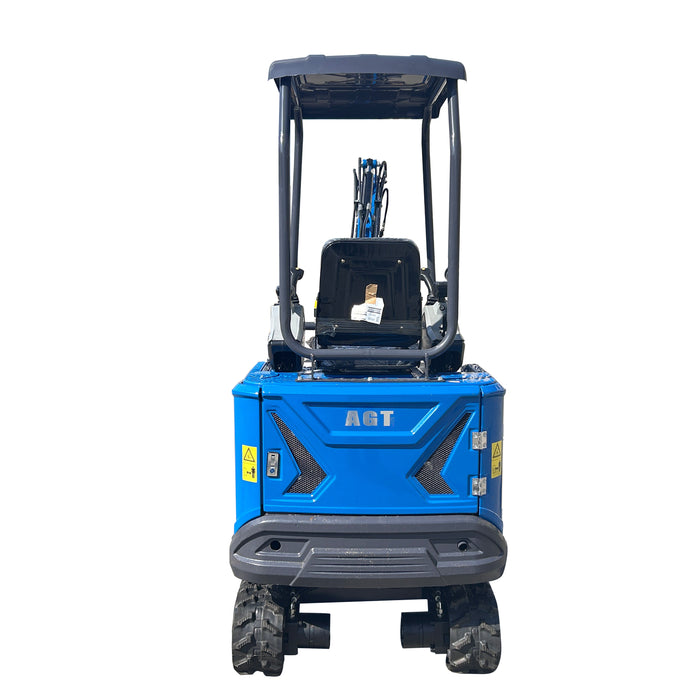

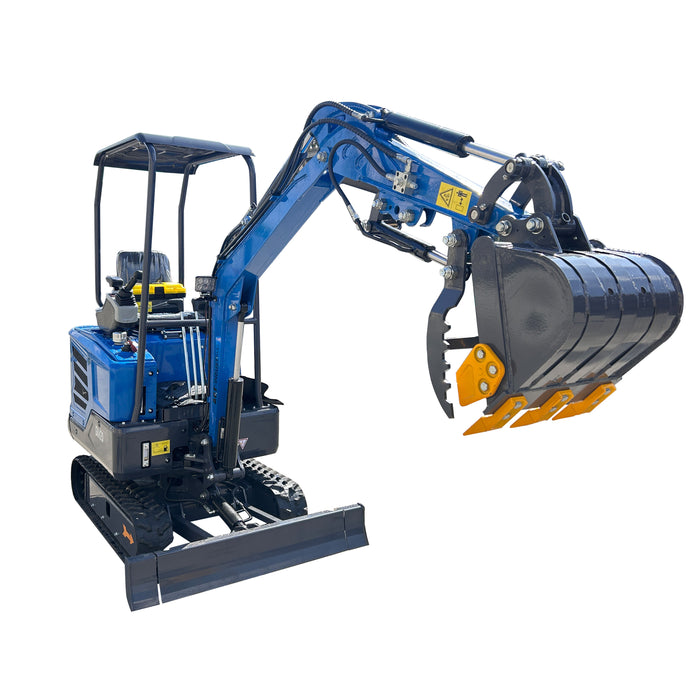

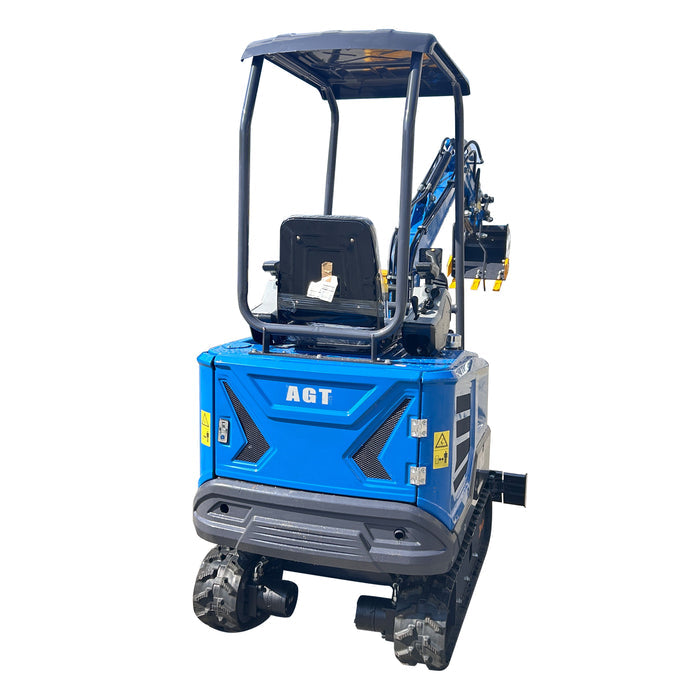

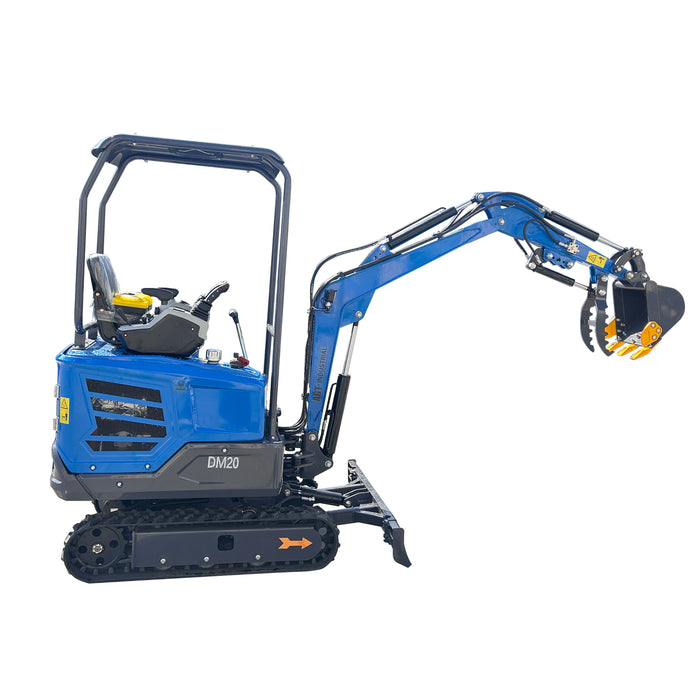

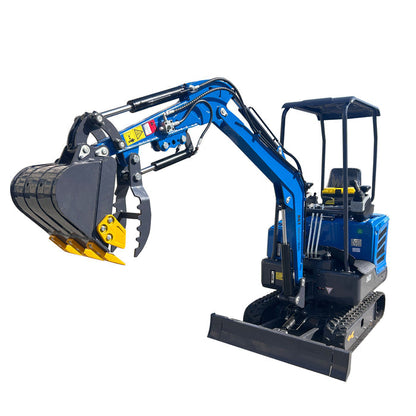

1.3 Ton, Kubota Diesel Engine Mini Excavator | AGT-DM20

Designed for medium-sized projects. With a compact design, 1.3-ton operating weight, and a digging depth of 7.4 feet, the AGT DM20 delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a Kubota D722 diesel engine, the DM20 features a 3-cylinder water-cooled system, expandable tracks, and a reinforced structure built for daily use.

The hydraulic blade and side-swing boom provide versatility, while the factory-installed hydraulic thumb and auxiliary line make it attachment-ready. Ideal for augers, rakes, tilt buckets, grapples, and more.

Technical Data:

• Operating Weight: 1300 kg
• Engine: Kubota D722 (3-cylinder, water-cooled diesel)
• Max Horsepower: 13.7 hp
• Max Power: 10.2 kW @ 2500 rpm
• Fuel Tank: 8.7 L (92# Diesel)
• Hydraulic Tank: 14.2 L

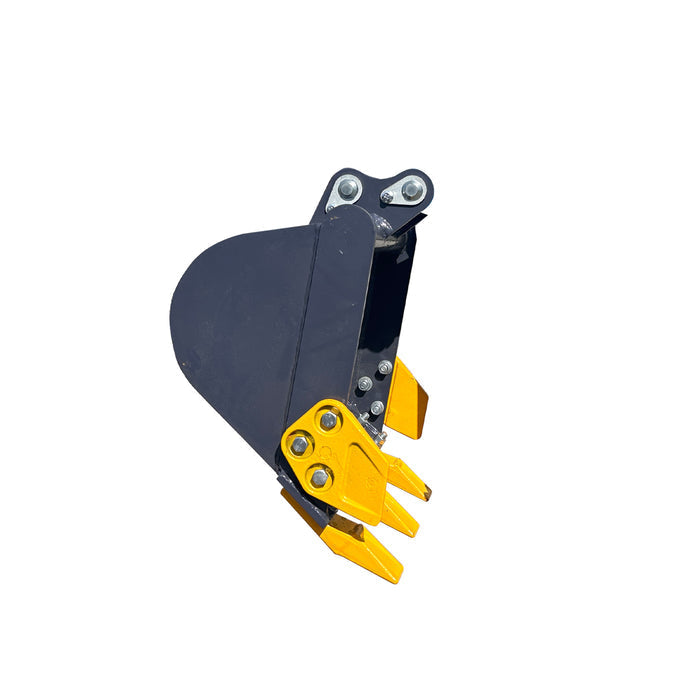

• Bucket Capacity: 0.03 m³
• Travel Speed: 0–2 km/h
• Climbing Ability: 30%
• Turning Speed: 10 rpm
• Max Vertical Excavation Depth: 2090 mm

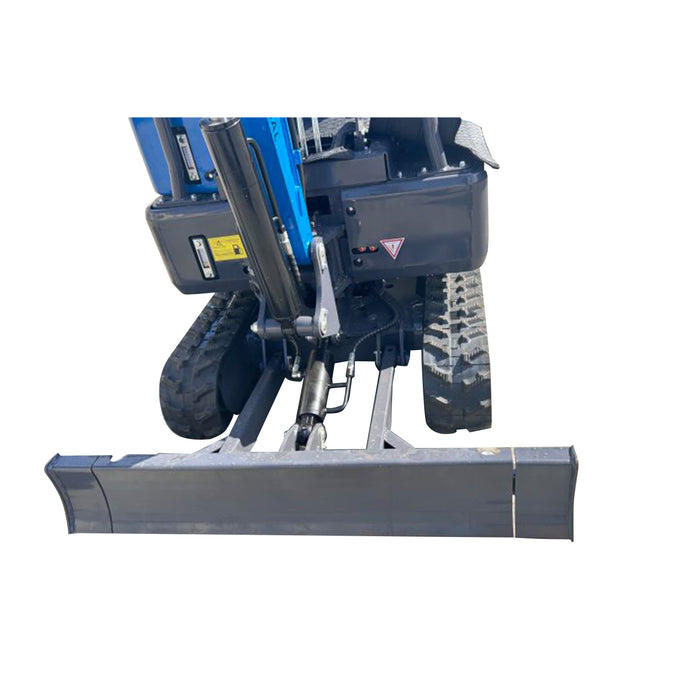

• Bulldozer Width/Height: 1000 mm / 200 mm

Dimension

• Operating Weight: 1.3 Ton (2,600 lbs)
• Overall Length: 3,200 mm (126 in)
• Overall Width: 936 mm (37 in)
• Overall Height: 2,210 mm (87 in)

Working Range

• Max Digging Depth: 2,257 mm (89 in)
• Max Digging Height: 2,890 mm (114 in)
• Max Dumping Height: 1,958 mm (77 in)
• Max Reach at Ground: 3,305 mm (130 in)
• Blade Width: 1,000 mm (39 in)
• Blade Height: 200 mm (7.5 in)
• Blade Max Lifting Height: 288 mm (11 in)
• Blade Max Drop Depth: 146 mm (5.5 in)

Engine

• Engine Brand: Kubota
• Fuel Type: Diesel
• Model: D722
• Rated Power: 10.5 kW (13.5 HP)
• Displacement: 720 cc
• Fuel Capacity: 8.7 L (2.3 gal)
• Hydraulic Tank Capacity: 14 L (3.7 gal)

Features

• KUBOTA Diesel Engine
• Side Swing Boom
• Hydraulic Thumb
• Pilot Control
• LED Work Light

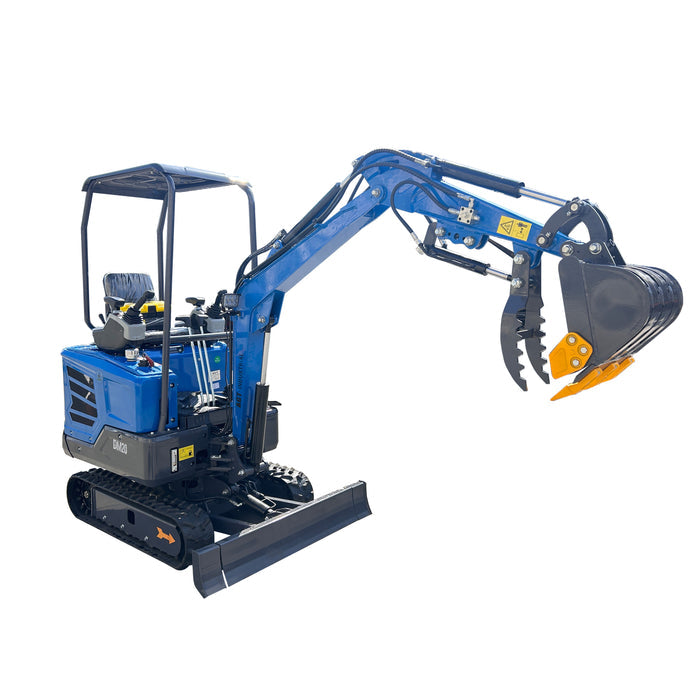

HYDRAULIC THUMB
Grabs and holds materials for easier handling.

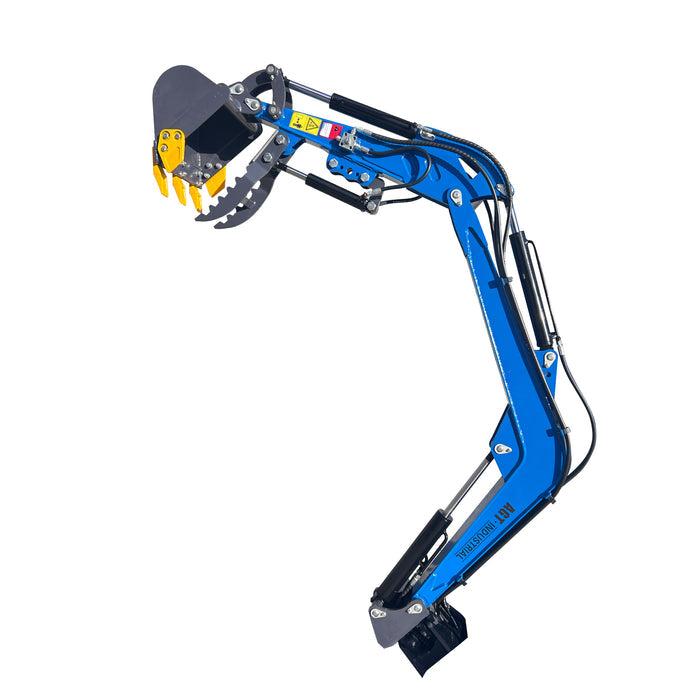

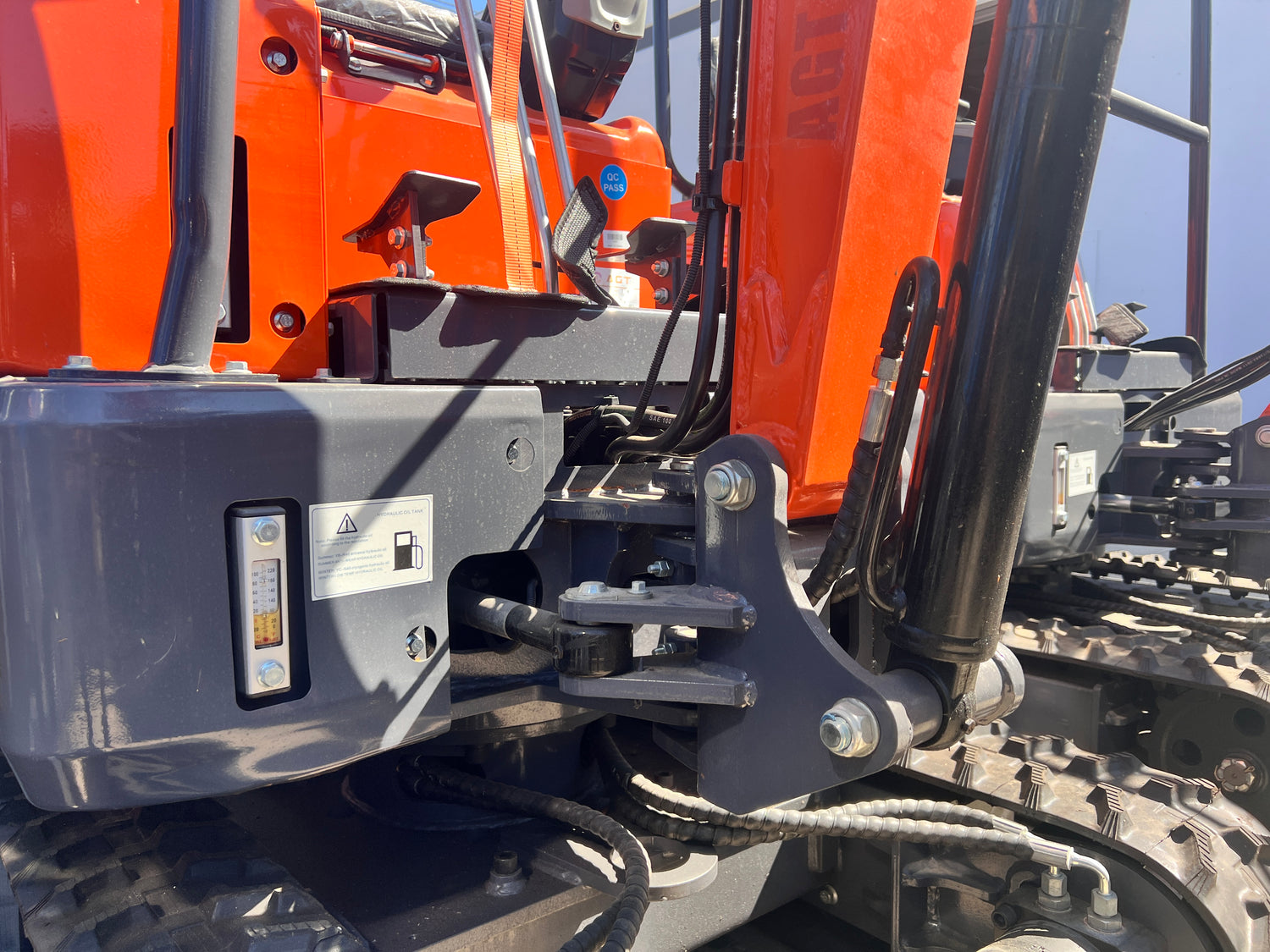

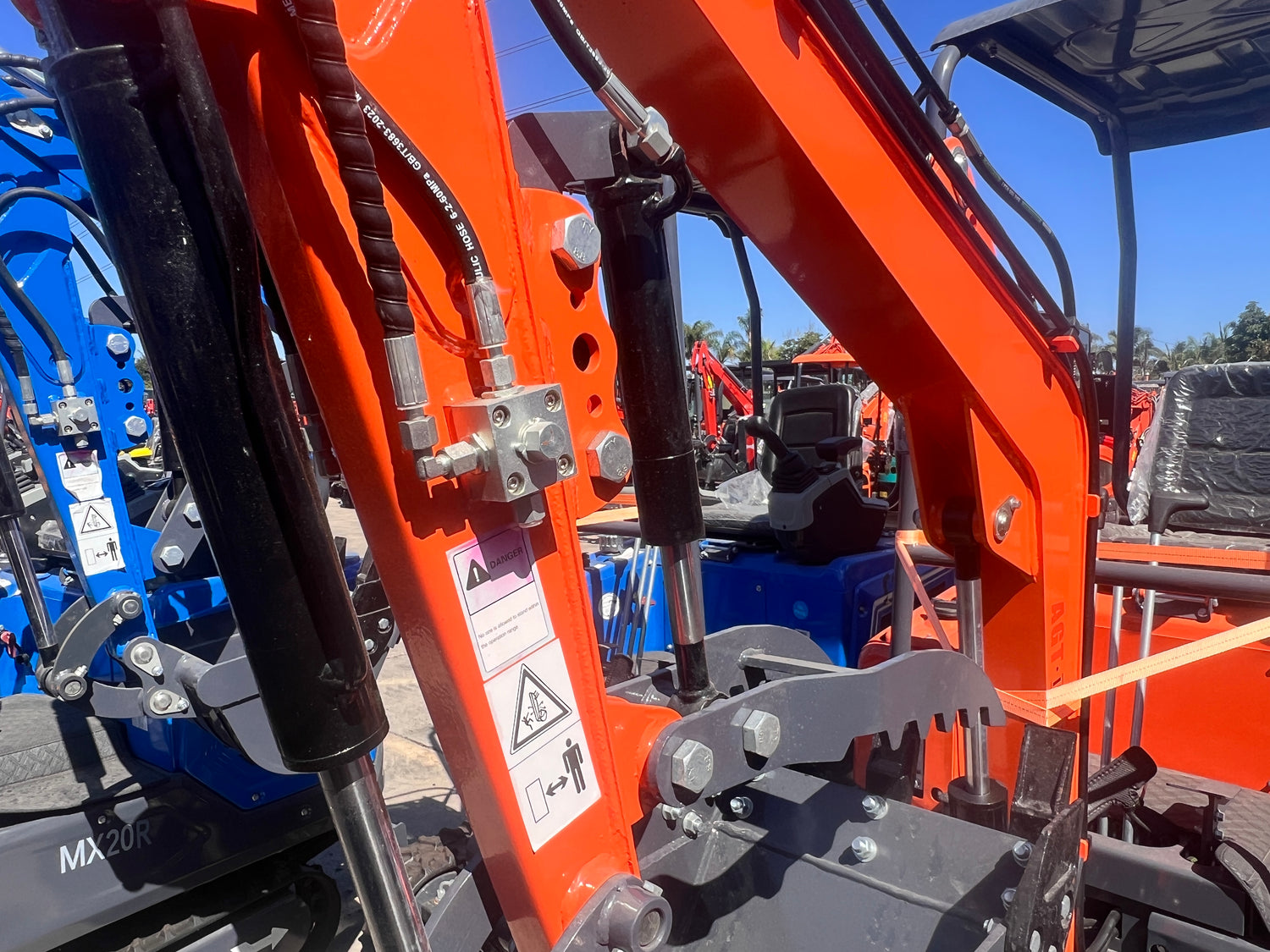

SIDE SWING BOOM
Works tight against walls and obstacles for maximum versatility on the jobsite.

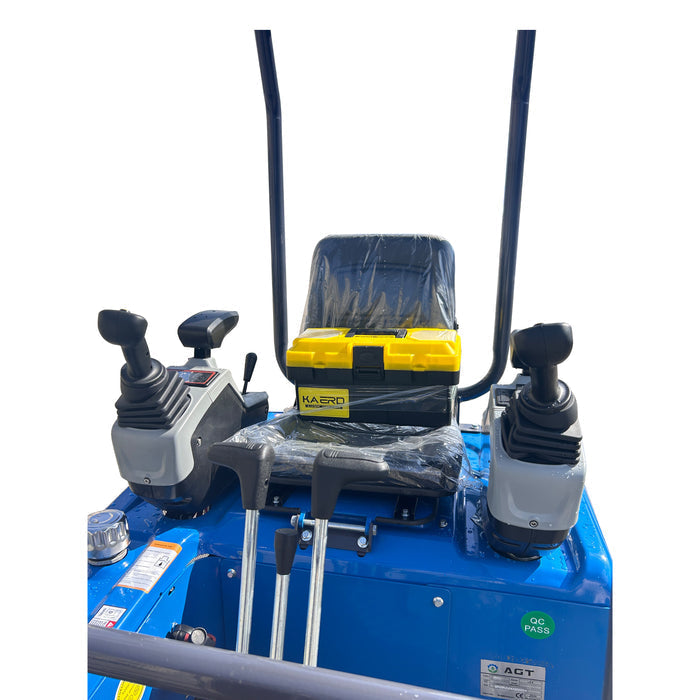

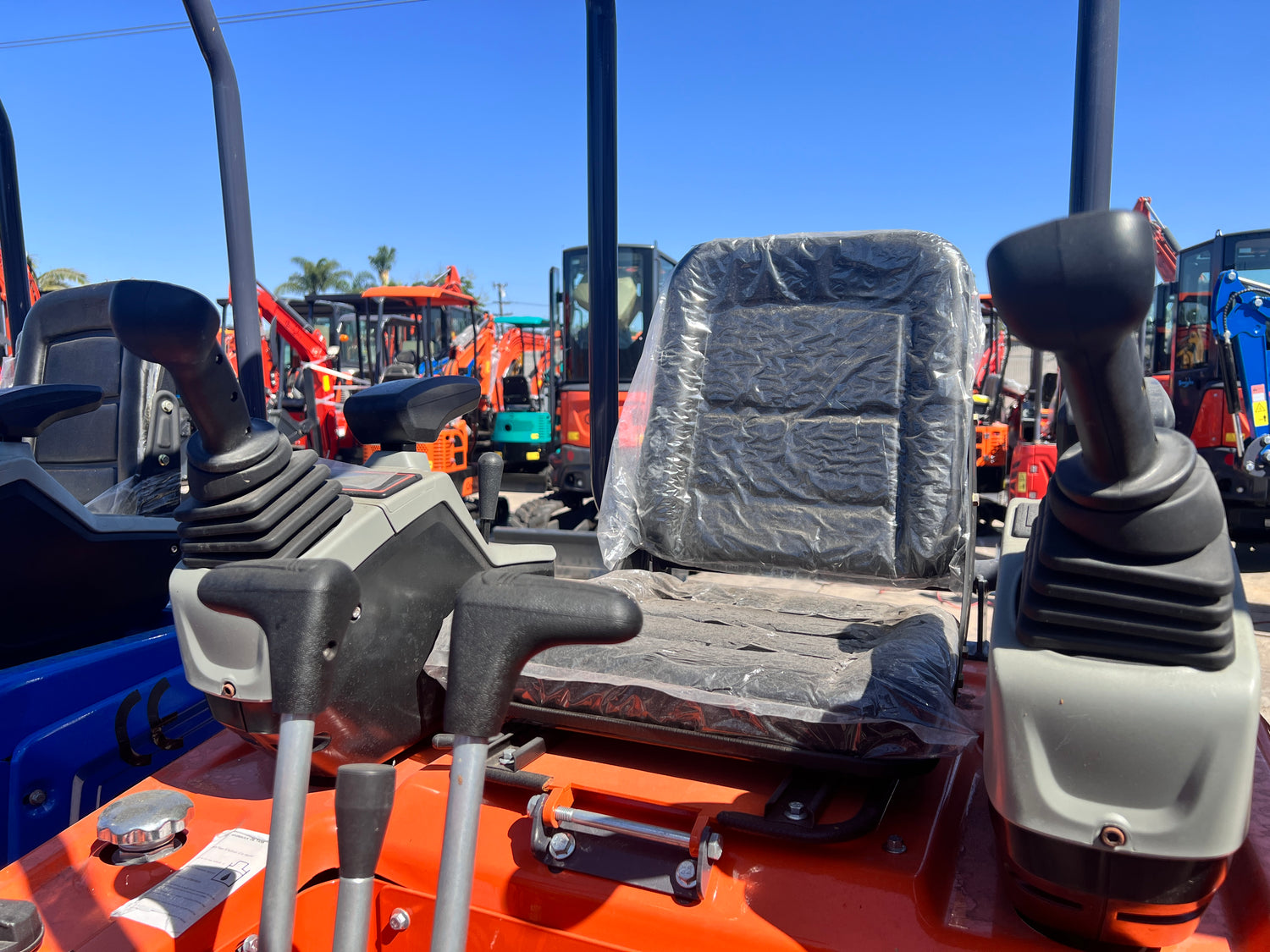

PILOT CONTROL
Smooth, precise joystick operation for easier handling and less operator fatigue.

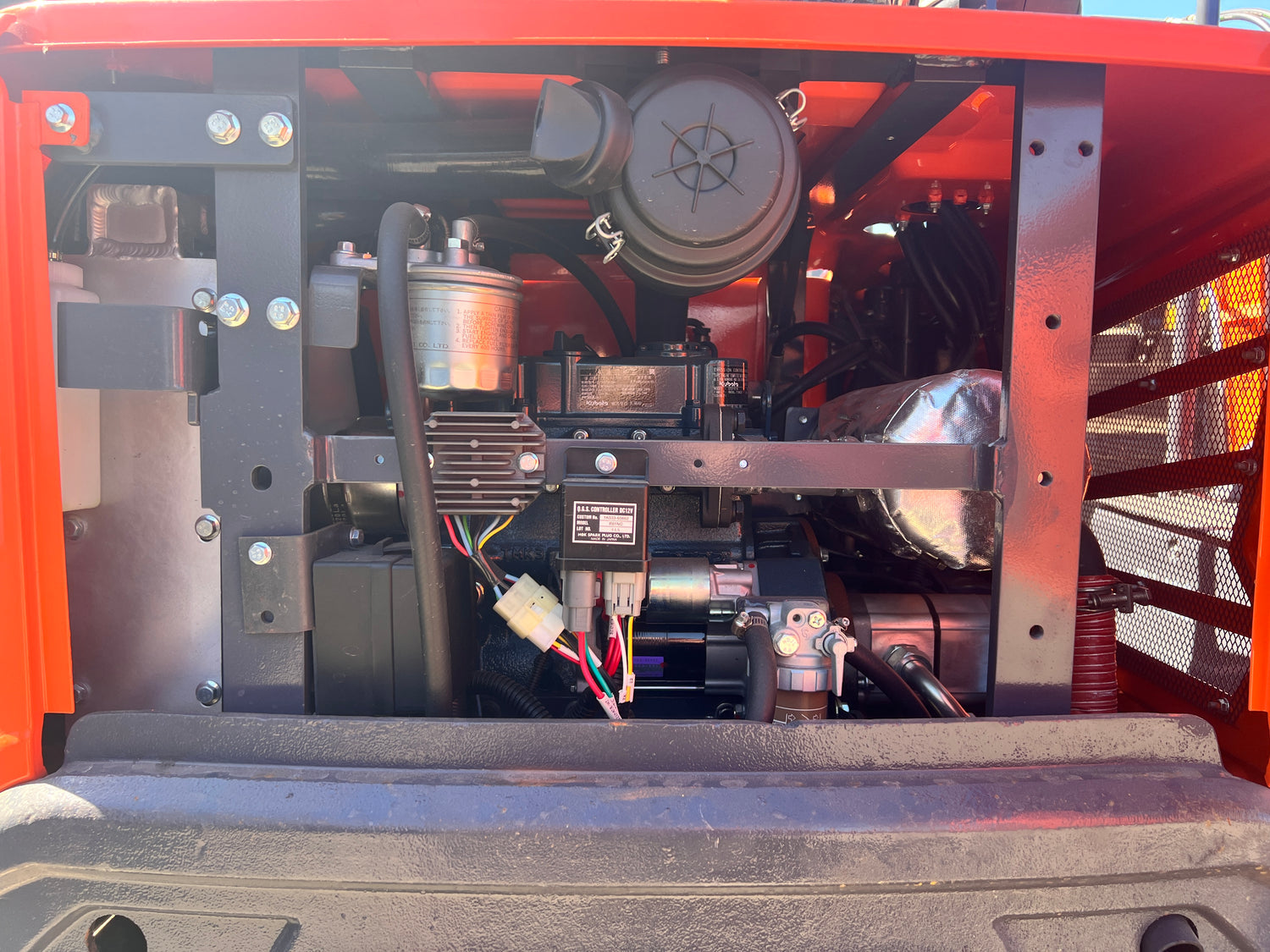

KUBOTA DIESEL ENGINE
The powerful 720cc diesel engine gives you an enjoyable experience through smoother and quieter operation
