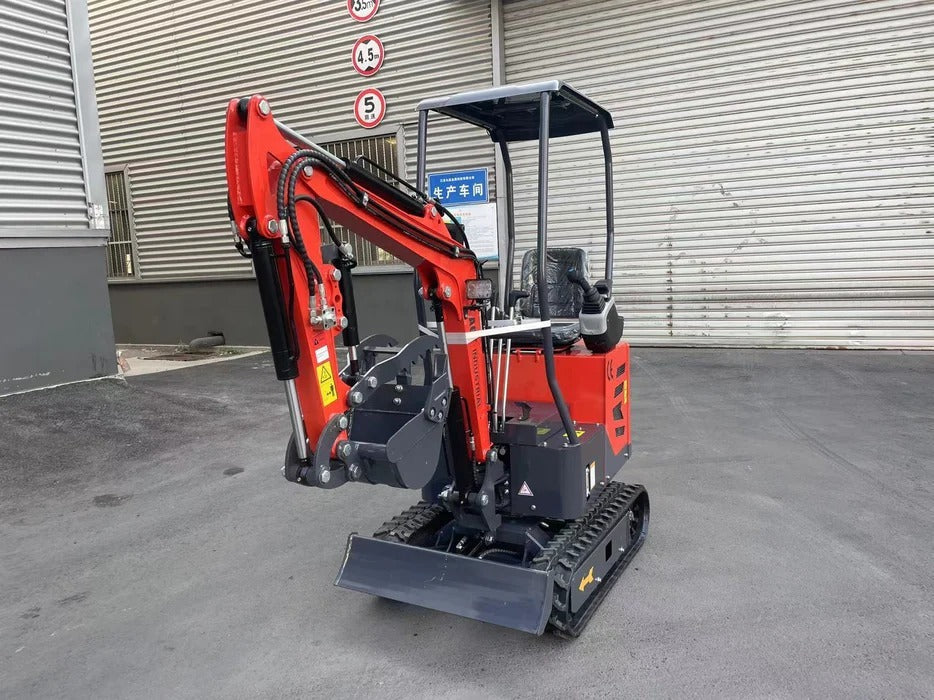

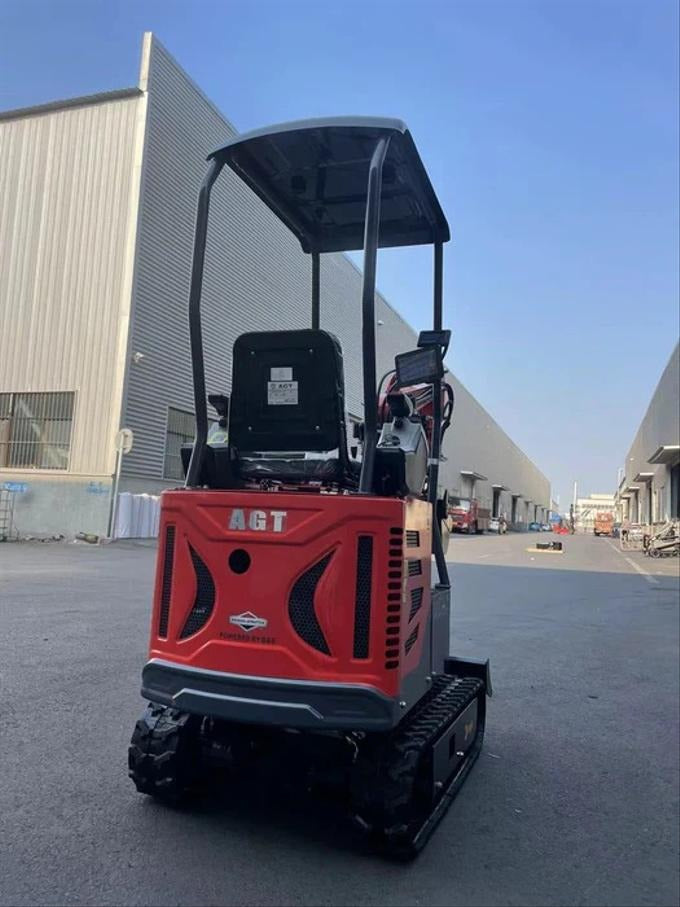

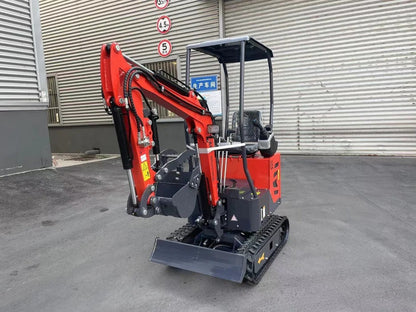

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb & Features | AGT-DM12X-PLUS

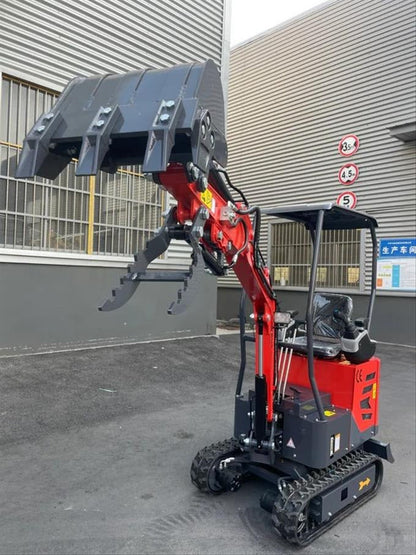

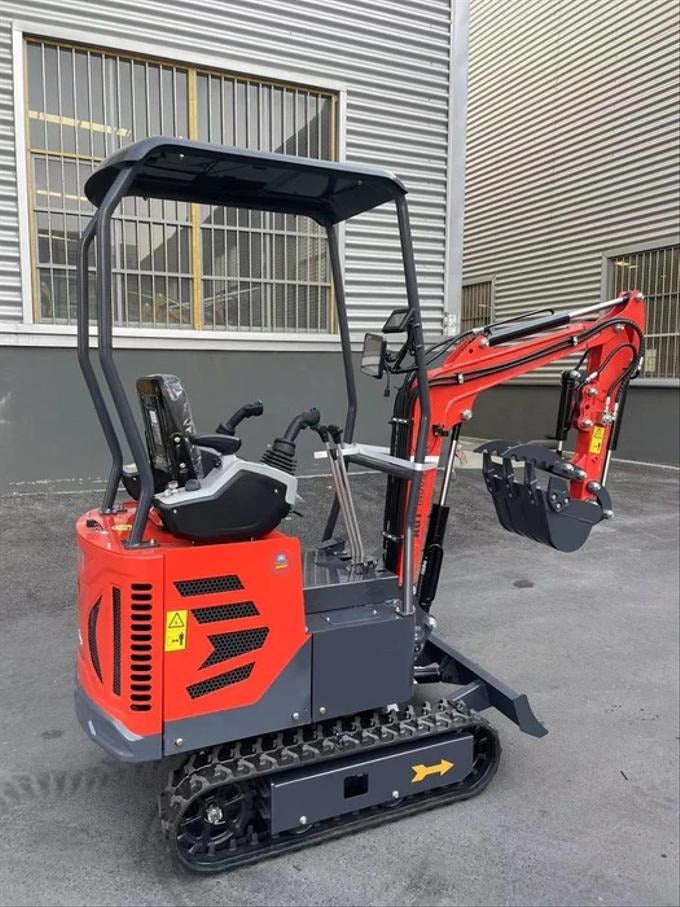

AGT-DM12X-PLUS: The Compact Powerhouse for Precision Digging

The AGT-DM12X-PLUS is designed for efficiency and ease of use in confined spaces. Ideal for landscaping, gardening, public works, and agricultural tasks, this 1-ton mini excavator offers superior maneuverability and performance. It's an upgraded version of the AGT-DM12X-C, boasting enhanced features for professional-grade operation.

Start Up Instruction

Key Features & Technical Specifications:

• Operation Weight: 1.1 Ton
• Engine: Briggs & Stratton EFI (Electronic Fuel Injection)
• Horse Power: 13.3 HP
• Maximum Gradeability: 30 Degrees
• Thickened wear-resistant track for durability
• Impulsive traveling motor for efficient movement
• High and low speed traveling capabilities
• Stainless steel screws for exterior parts, resisting corrosion
• Pilot operation for precise control
• Italy EBI pilot handle for ergonomic comfort

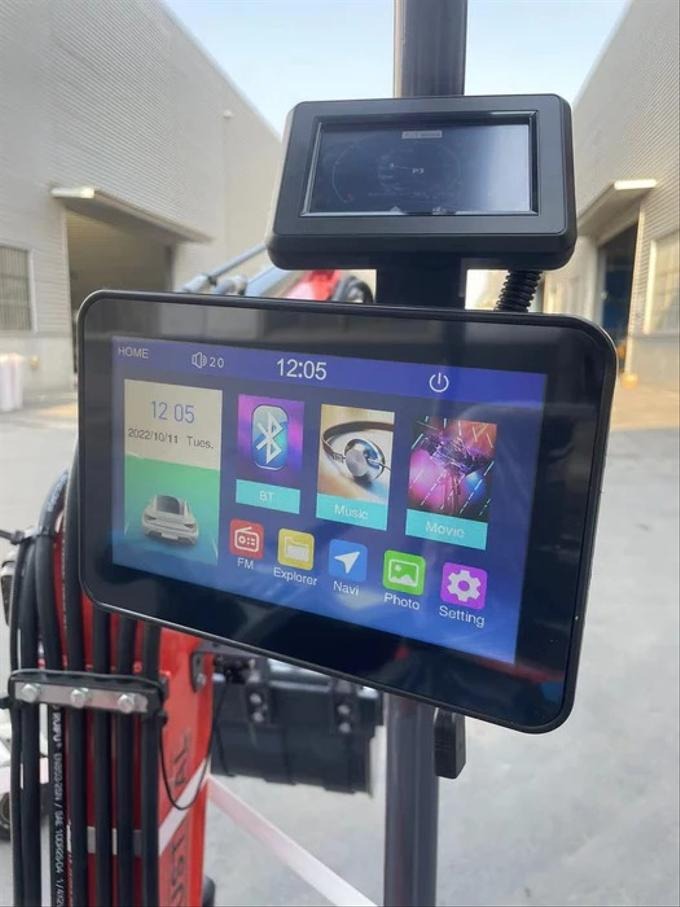

• Dual display screen: Parameter screen and entertainment screen
• Front and rear double camera for enhanced visibility

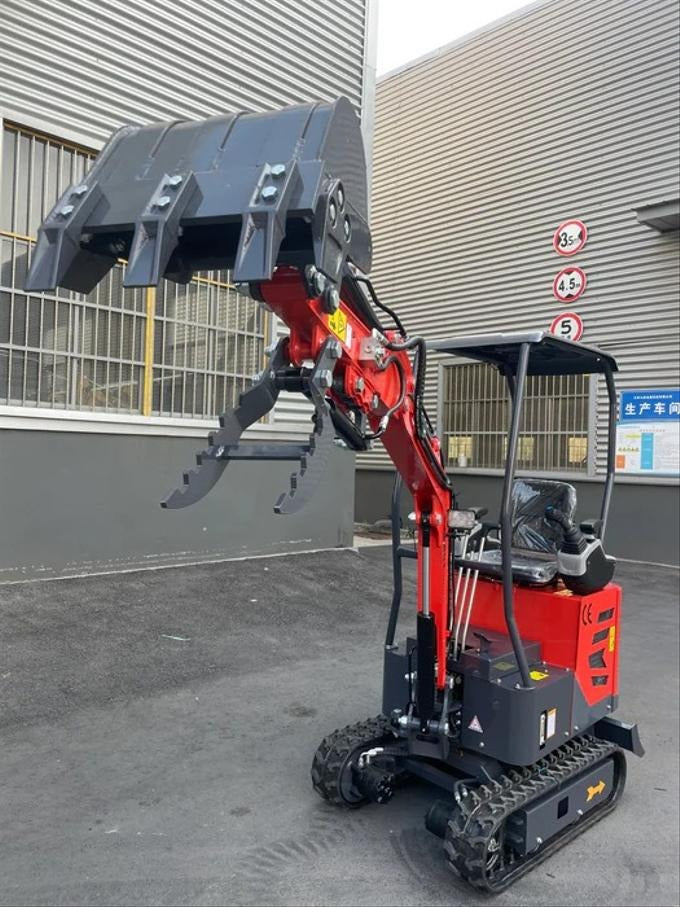

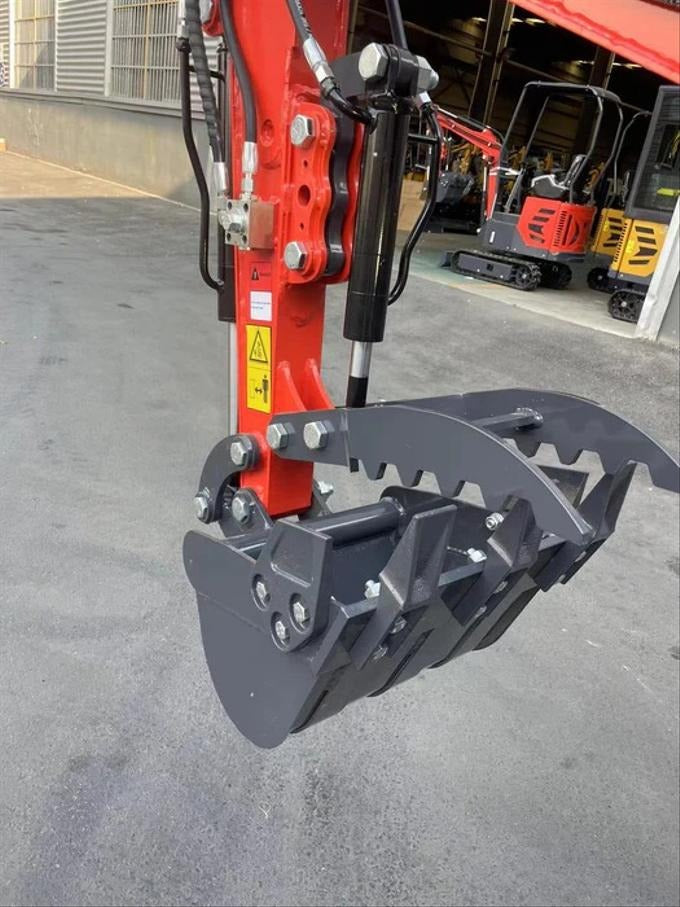

• Hydraulic thumb clamp included for versatile gripping
• Side swing configuration for extended reach
• Oil cooling configuration to prevent overheating

Dimensions & Performance:

• Total Weight: 2200 lbs
• Transport Length: 89 inches
• Transport Width: 38 inches
• Transport Height with Canopy: 87 inches
• Bucket Width: 14 inches
• Max Digging Radius: 121 inches
• Blade Width: 1.41 inches
• Max Digging Depth: 69 inches
• Bucket Capacity: 0.883 cubic feet
• Walking Speed (Low/High): 0-1.24 mph
• Grounding Specific Pressure: 4.64 psi
• Max Digging Height: 105 inches
• Max Unloading Height: 75 inches

Hydraulic System:

• Main Pump Type/Model: Gear pump/06
• Rated Setting Pressure: 2320 psi
• Max Flow of Main Pump: 8-12 gallons/min
• Multi-way Valve: 8-section multi-way valve
• Travel Hydraulic Motor Type: BM6-310
• Travel Motor Brand: Liyuan
• Rubber Track Width: 11.37 inches

Swing Hydraulic Motor:

• Type: BM2-250
• Displacement: 250

Fuel and Fluid Capacity:

• Fuel Tank Capacity: 1.74 gallons
• Hydraulic Oil Tank: 4.76 gallons
